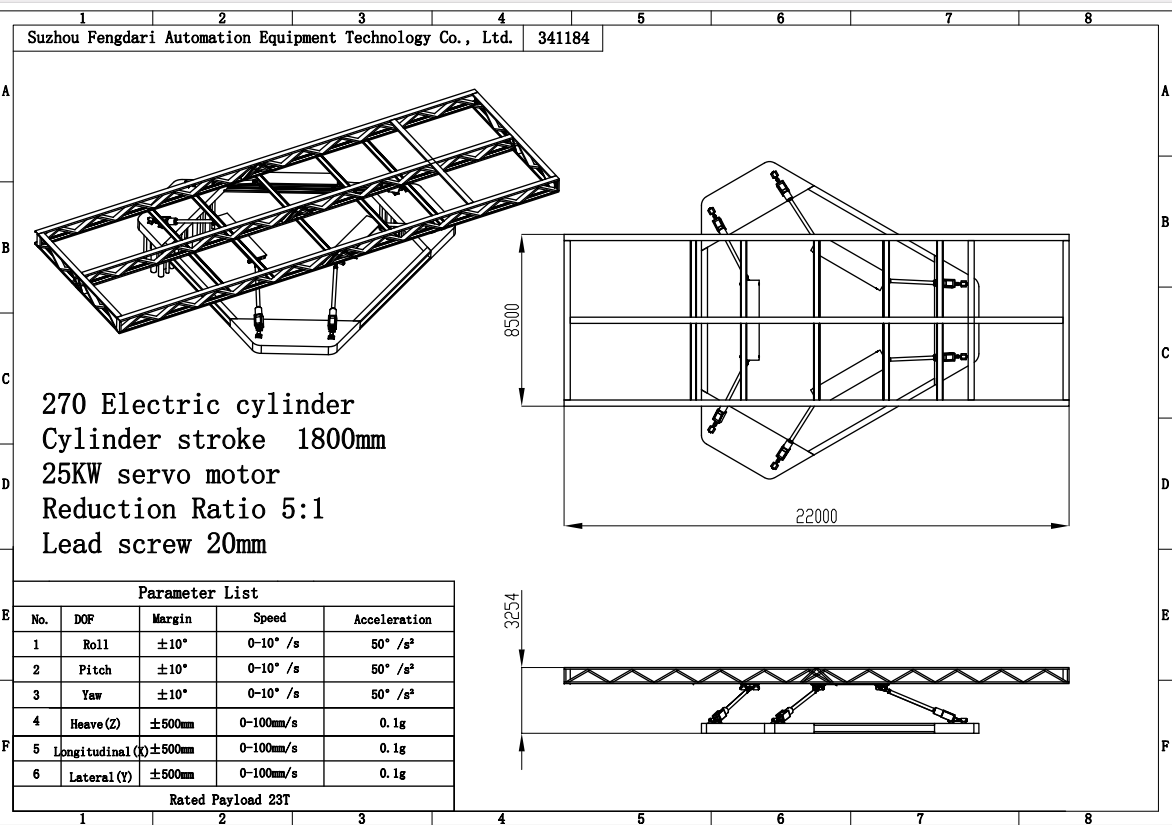

Parameters with 23000kg Payload Motion Simulating Platform（Customer Case）:
FDR 6DOF Motion Simulating Platform Performance Overview:
Payload | 20-23000kg | ||||
Posture | Displacement | Speed | Acceleration | Accuracy | Repeat Accuracy |
Pitch(a) | ±5°-±35° | ≤80° | ≤250/s⊃2; | 0.03° | 0.02° |
Rolling(β) | ±5°-±35° | ≤80° | ≤250/s⊃2; | 0.03° | 0.02° |
Yam(Y) | ±5°-±35° | ≤80° | ≤250/s⊃2; | 0.03° | 0.02° |
Vertical Lift | ±10mm-±500mm | ≤1000mm/s | ≤1.0g | 0.03mm | 0.1mm |
Surge(Y) | ±10mm-±500mm | ≤1000mm/s | ≤1.0g | 0.03mm | 0.1mm |
Sway(x) | ±10mm-±500mm | ≤1000mm/s | ≤1.0g | 0.03mm | 0.1mm |
System response | 0Hz-20Hz | ||||
Drift amount | The platformsystem runs continuously for more than 12 hours,and the position drift of any one of the electric cylinders does not exceed 0.00025m. | ||||
Unmatched Load Capacity: Specifically designed to handle massive weights, this platform allows for the integration of heavy machinery, full-sized vehicles, or large-scale structures without compromising on speed or accuracy.
Precision Engineering: Despite its size, the system offers exceptional dynamic accuracy. Utilizing high-resolution feedback sensors and advanced control algorithms, it minimizes latency and ensures that motion cues are realistic and repeatable.

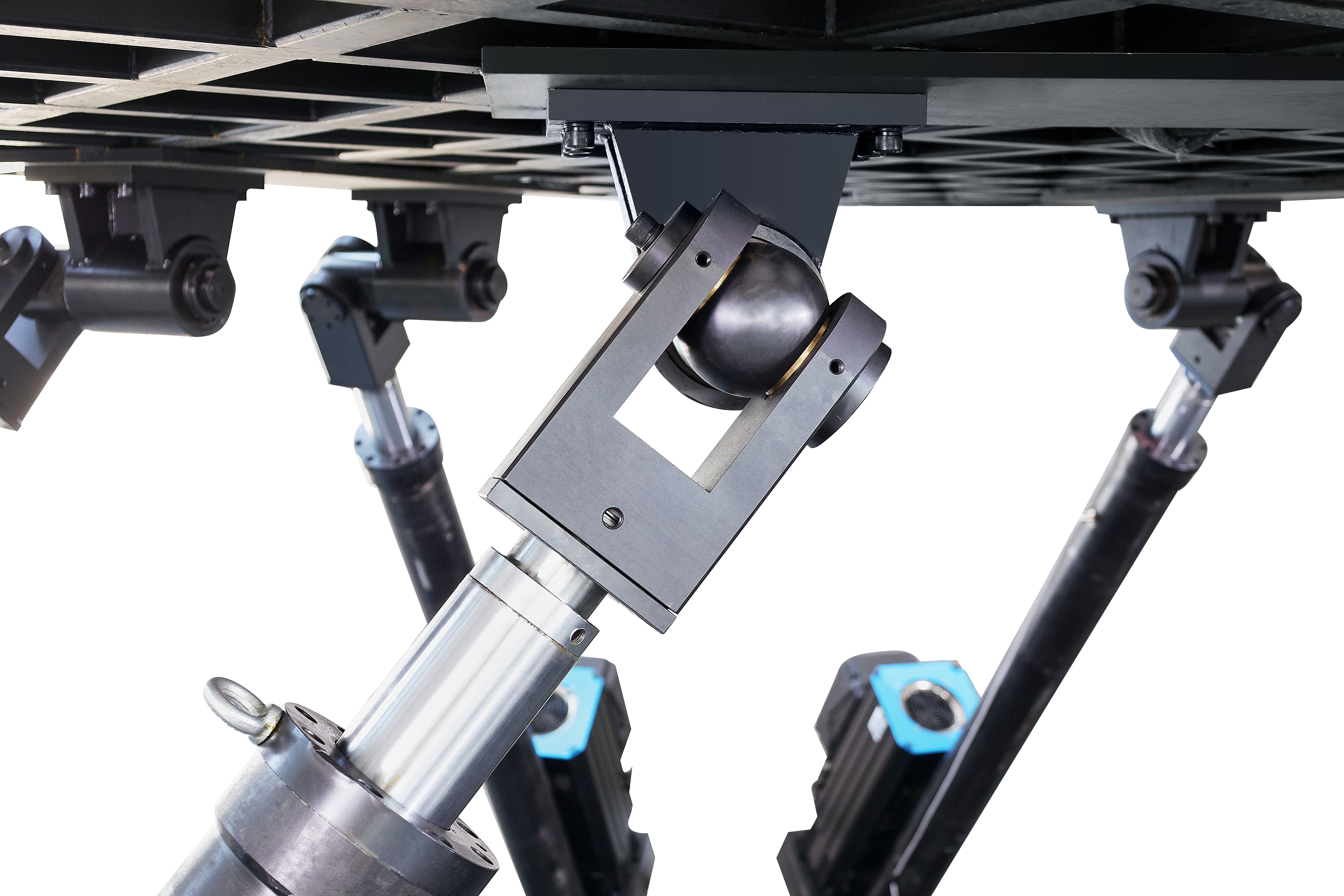

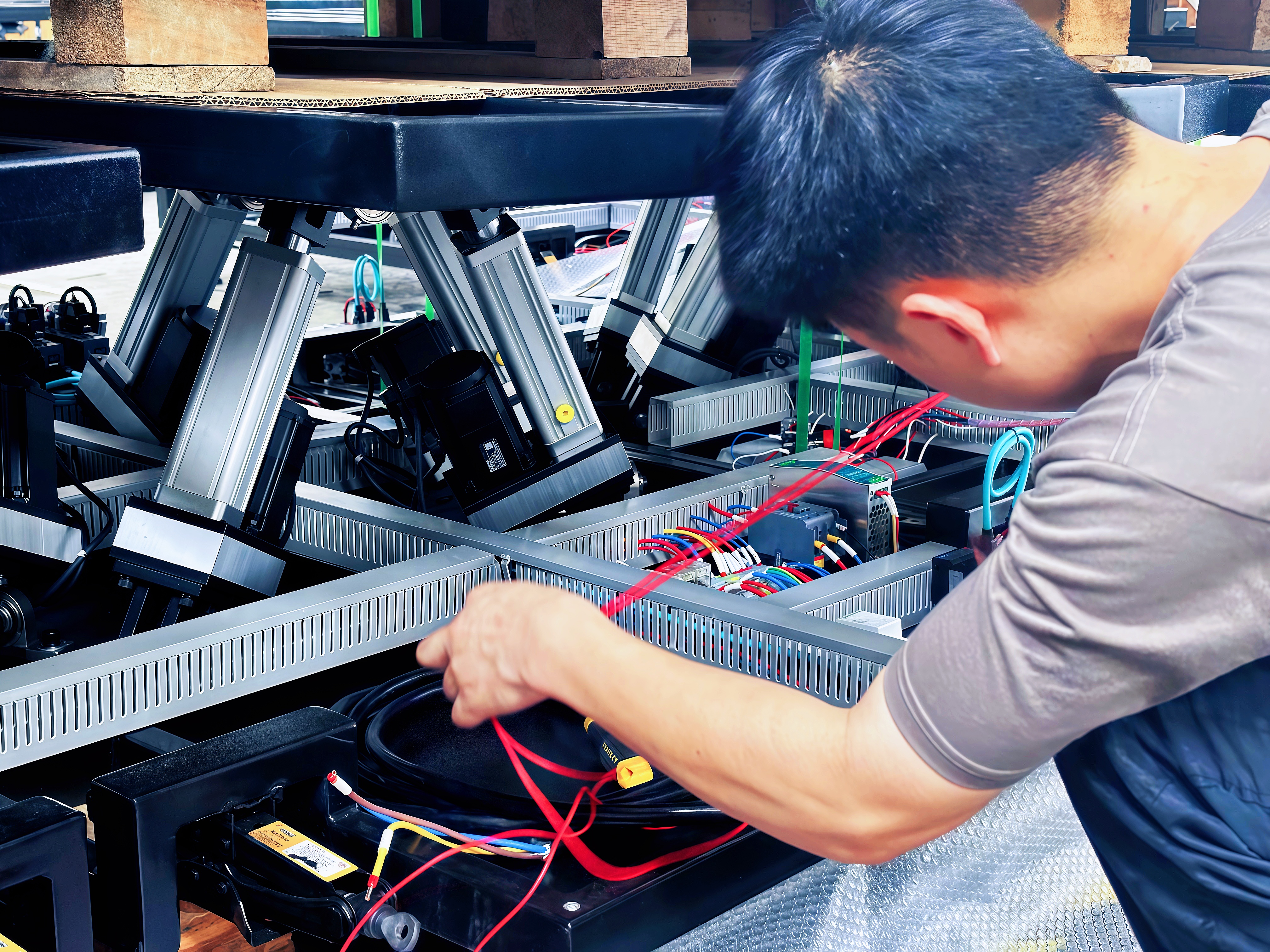

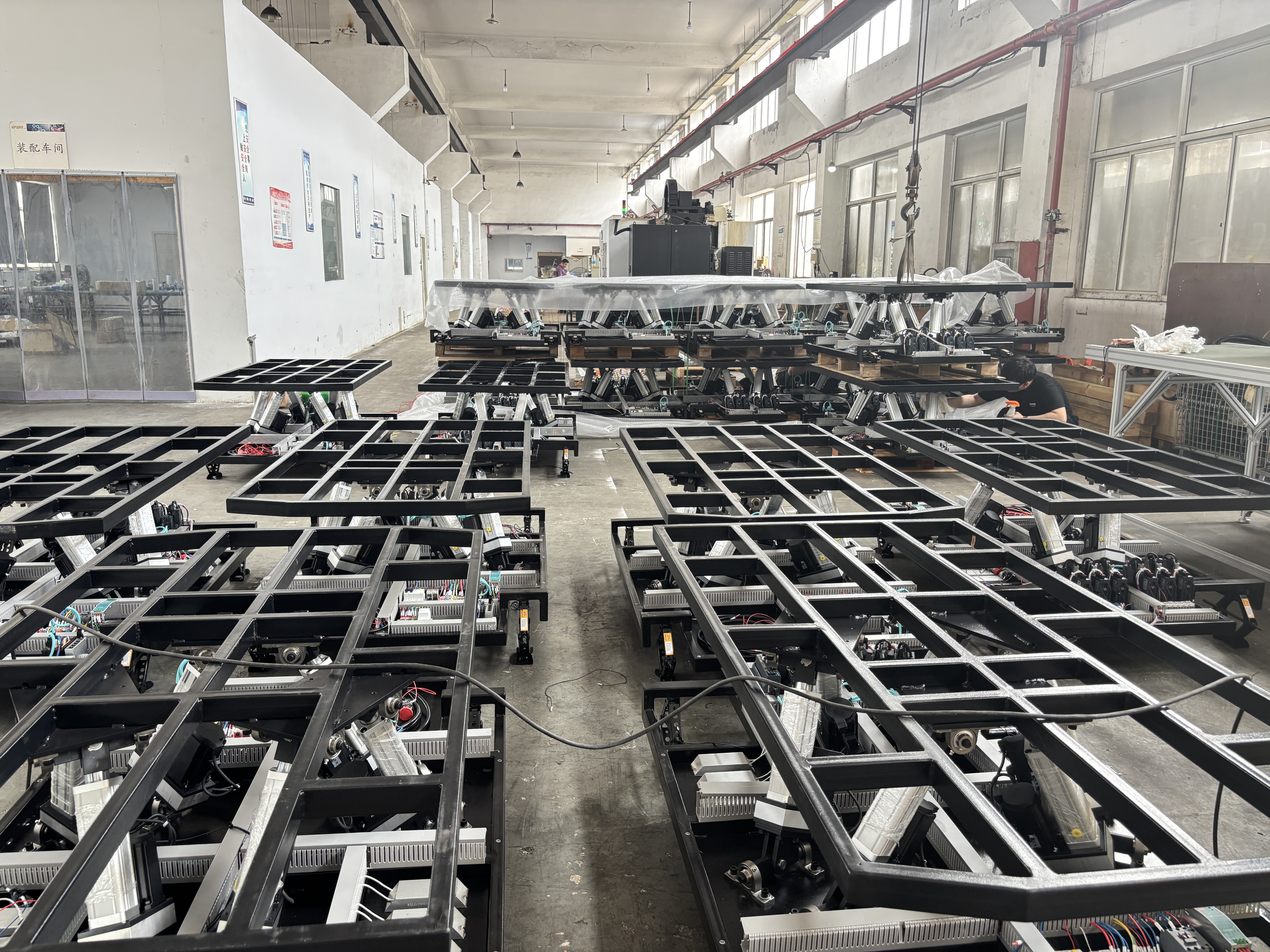

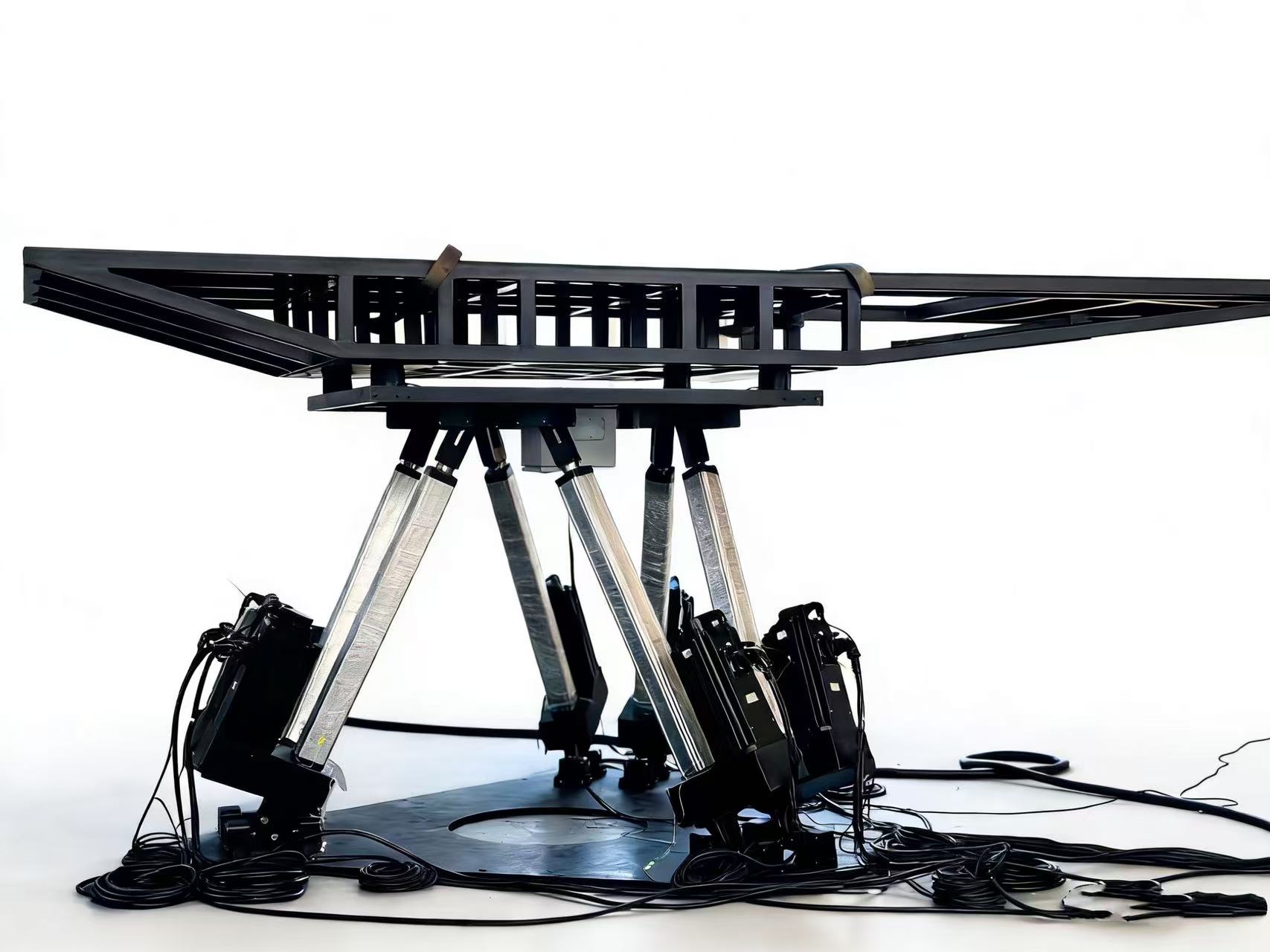

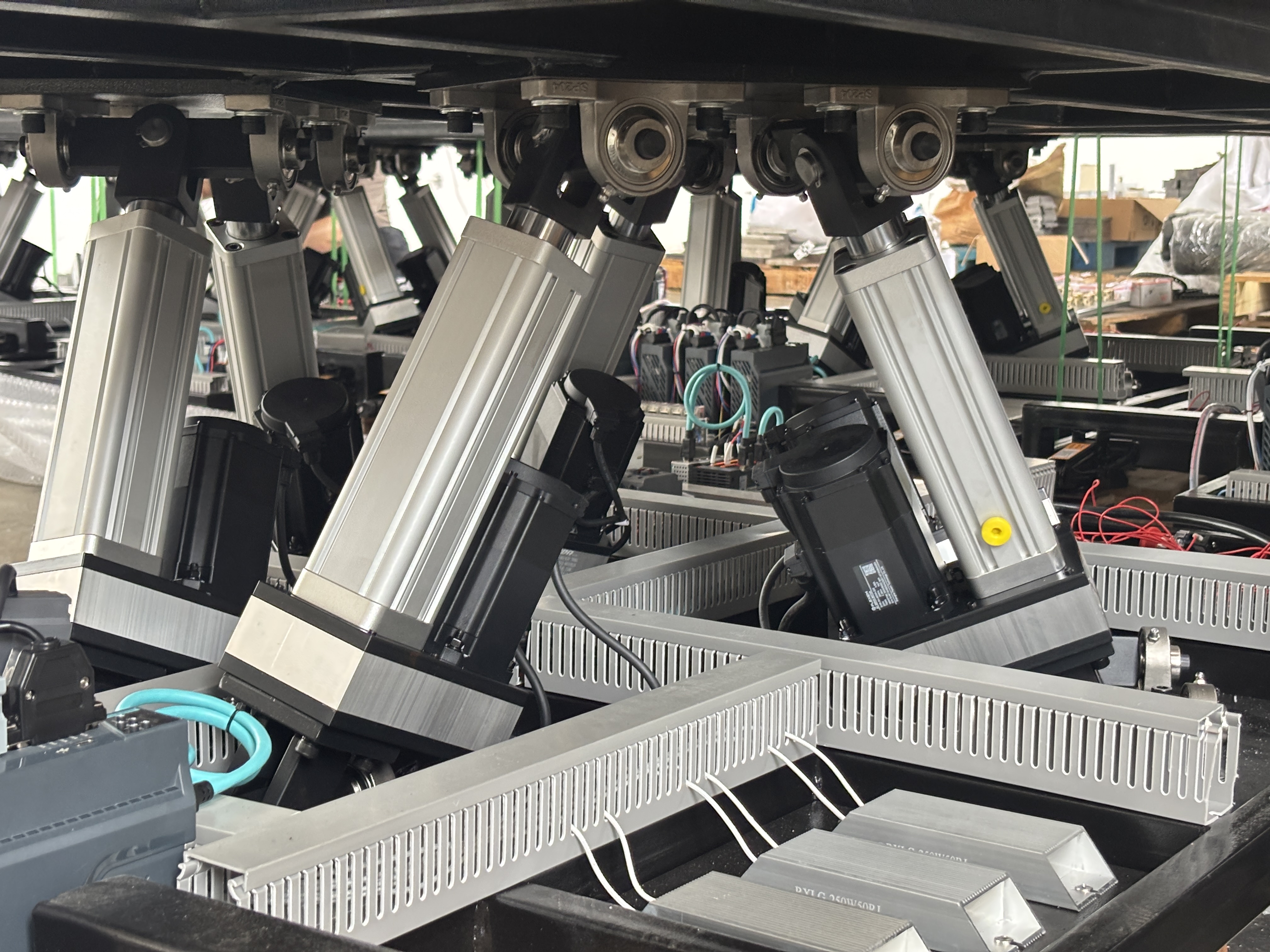

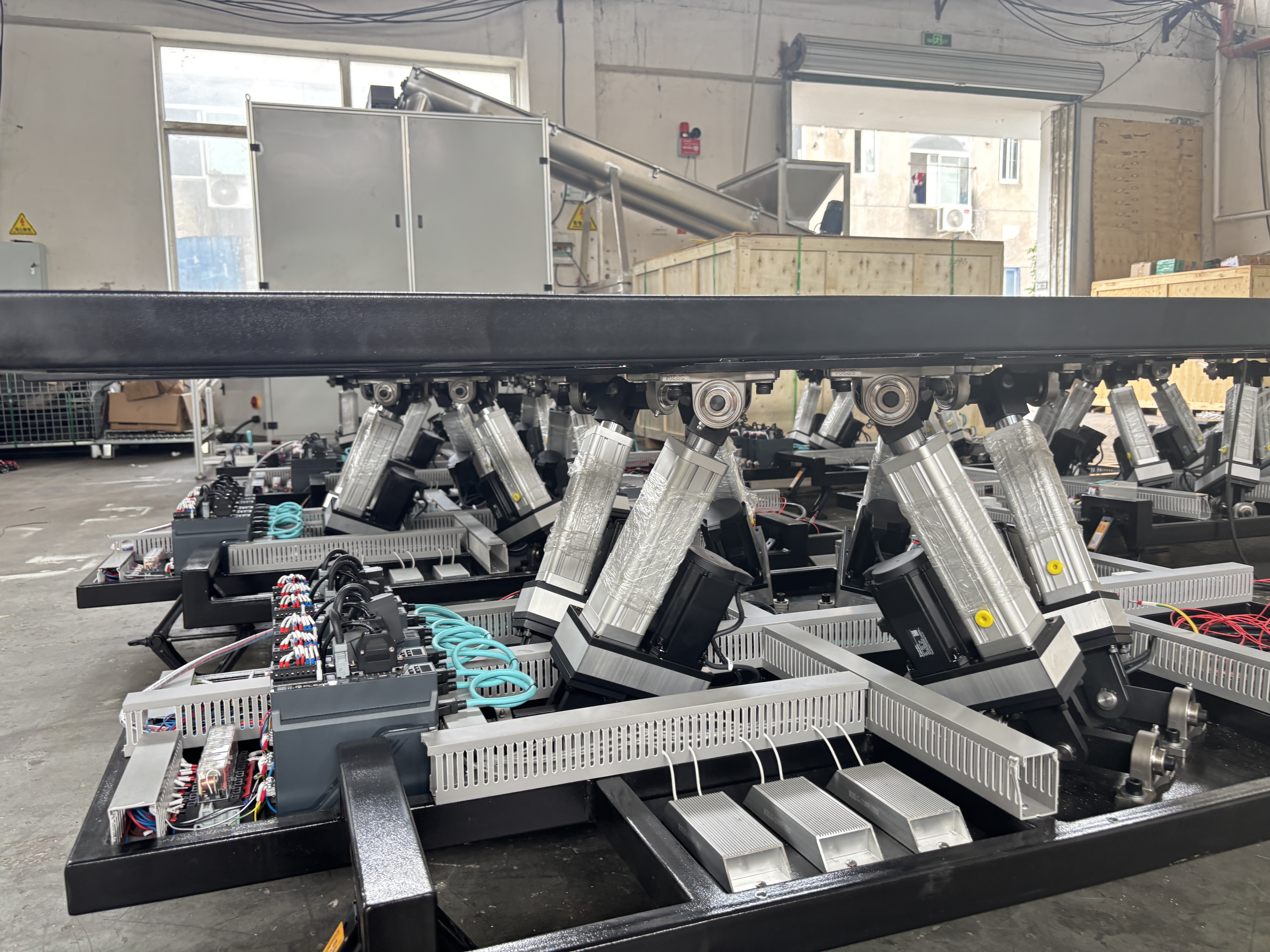

Robust Kinematics: The six independently actuated legs work in perfect synchronization to provide smooth, combined movements across all axes. The structural steel frame is engineered for maximum stiffness and durability, ensuring a long operational lifespan under continuous heavy use.
Versatile Motion Profiles: Capable of executing complex wave-forms, high-fidelity road simulations, and abrupt spatial disorientation maneuvers.
Full-Scale Vehicle Simulation: Trucks, buses, construction vehicles, and military armor testing.
Industrial Automation: Heavy workpiece positioning and robotic assistance.
Scientific Research: Seismic simulation, structural dynamics testing, and physics research.
Heavy-Duty Entertainment: Large-format ride theaters and immersive attractions.
Aerospace & Defense: Aircraft cockpit simulation and weapons systems testing.
