6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

6 Axis Six Degrees of Freedom Motion Platform 1000kg Payload 500mm Stroke FDR

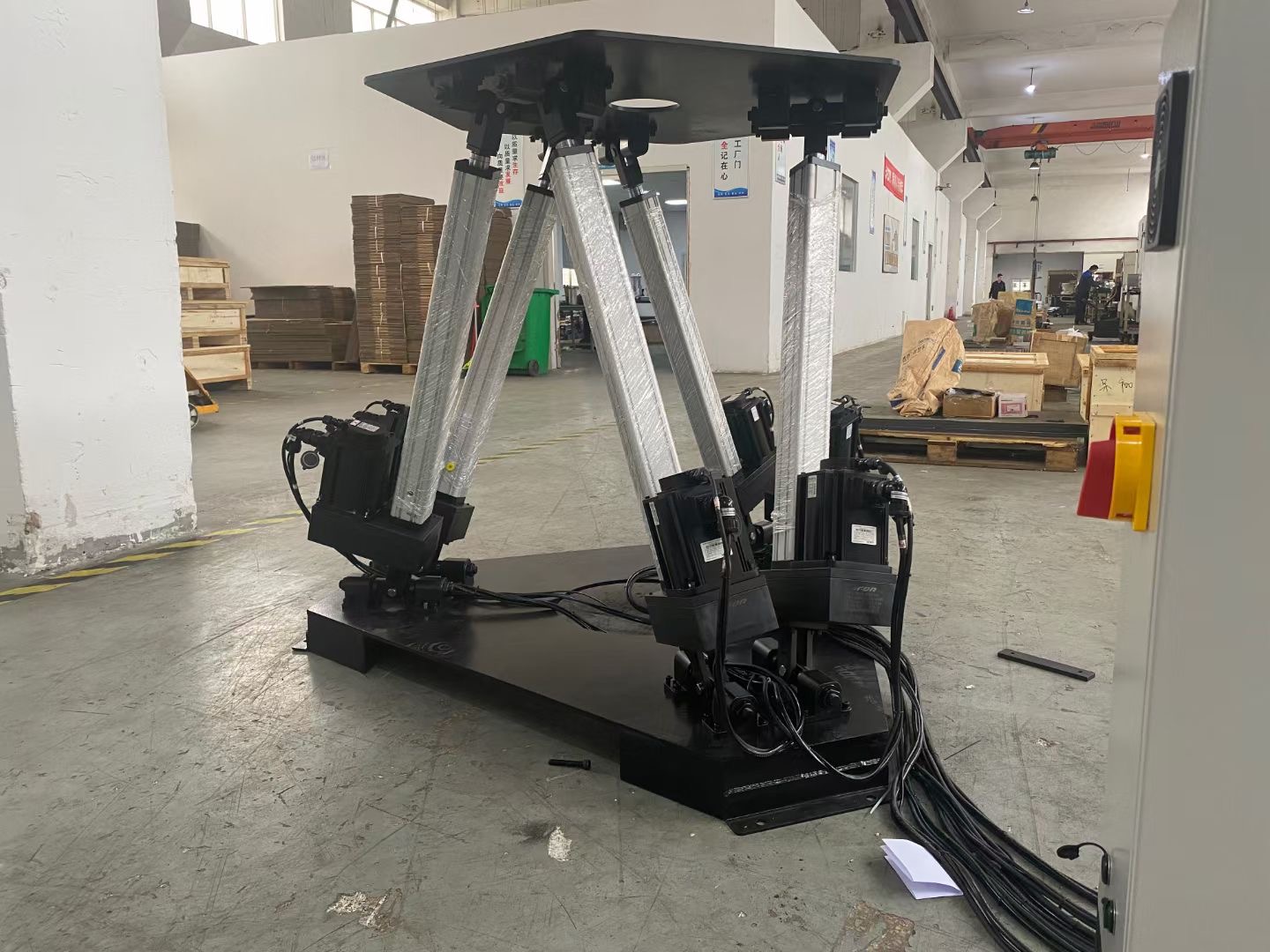

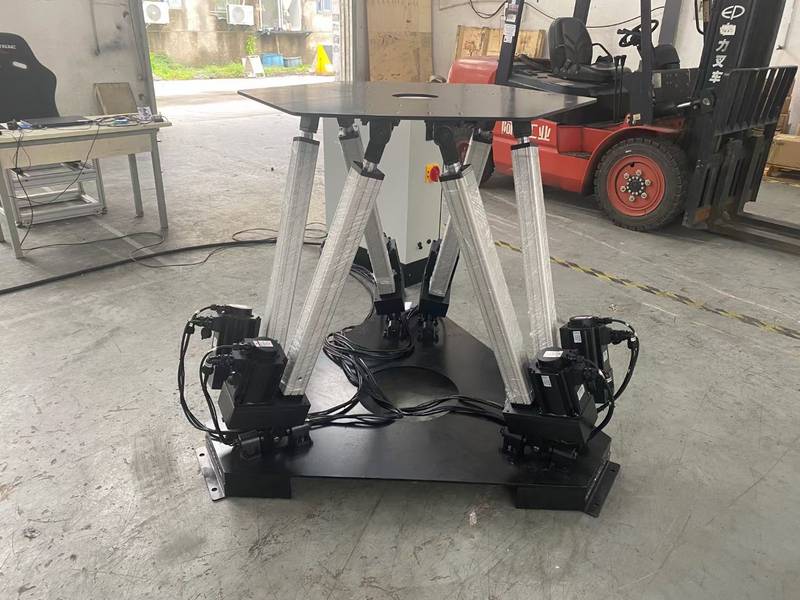

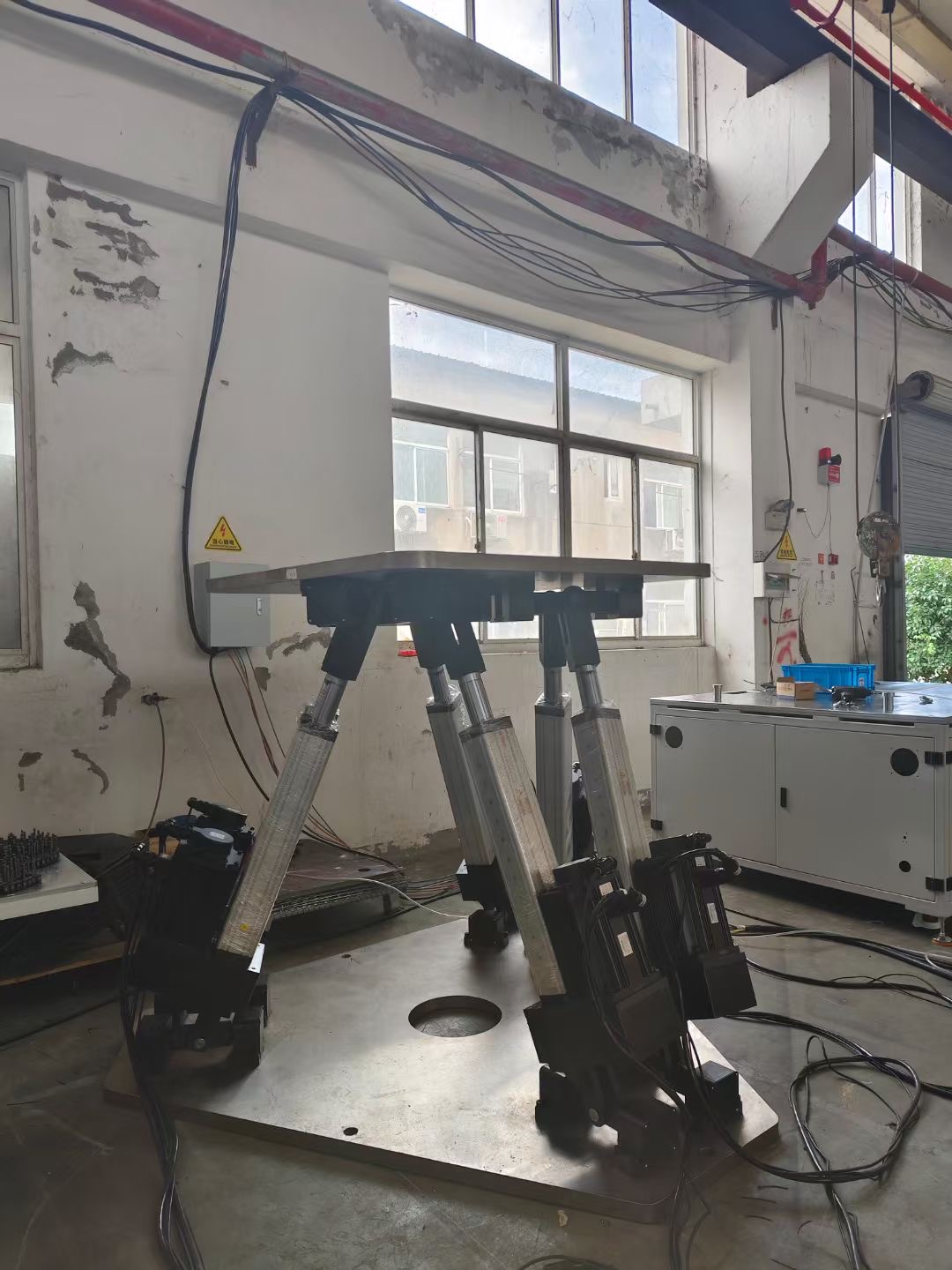

Our 6 DOF motion platform is designed for flight simulation, car driving simulation, laboratory testing and industrial dynamic simulation.It features 1000kg max load capacity and 500mm working stroke, driven by high-performance servo electric cylinders with closed-loop control.
The platform realizes six-degree-of-freedom collaborative movement including pitch, roll, yaw, lifting and horizontal translation. With high positioning accuracy, smooth operation, low noise and strong stability, it can p

Quantity:
Availability:





Inquire Add to Basket

Product Description

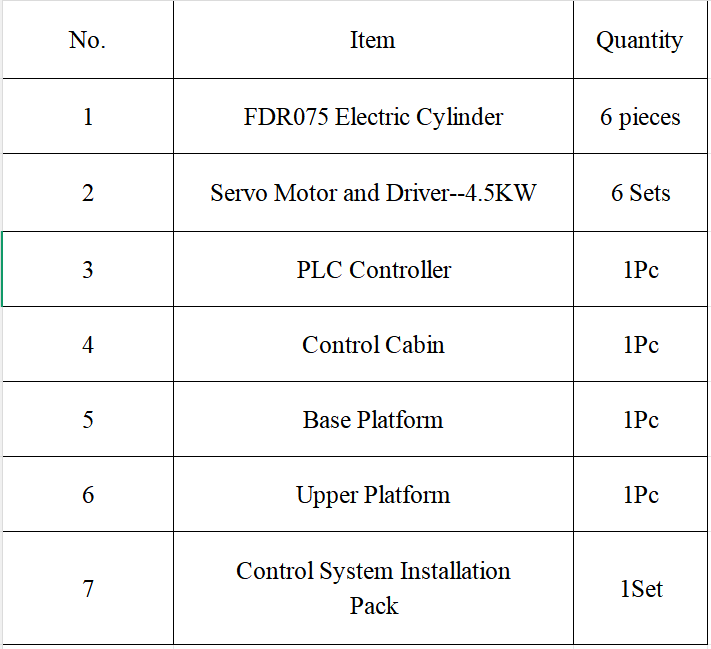

Configuration List of FDR 6DOF-1000KG Payload:

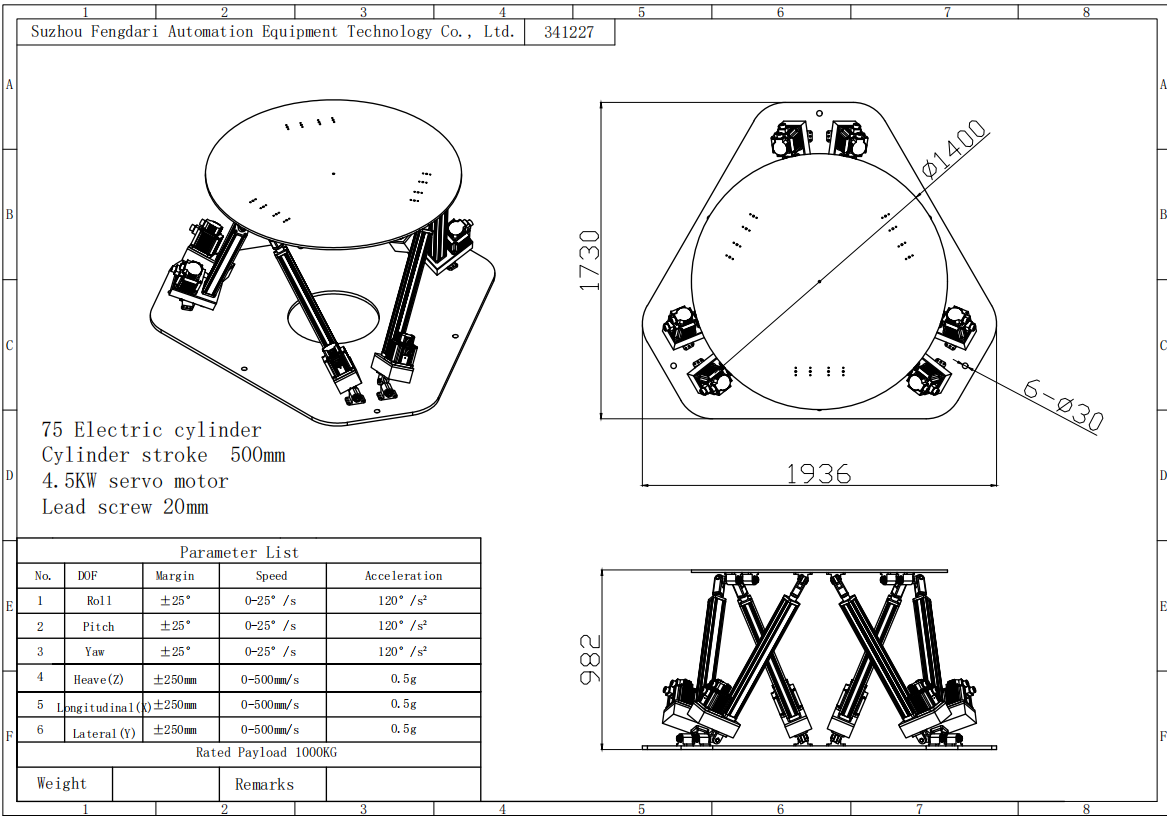

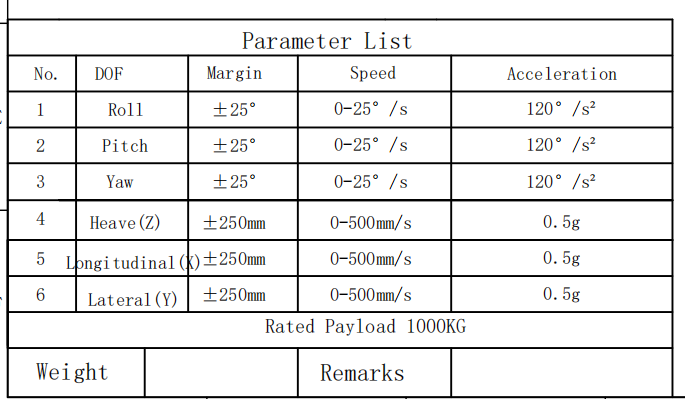

Parameters of FDR-6DOF-1000KG:

6 DOF motion platform Six Degrees of Freedom Platform Flight Simulation Platform Car Driving Simulator Platform Servo Motion Platform High Precision Motion Base industrial simulation platform 6DOF Hexapod Platform Custom Motion Simulation Platform
