High-Speed 6 Axis Motion Platform 100kg Payload 1000mm/s for Simulation

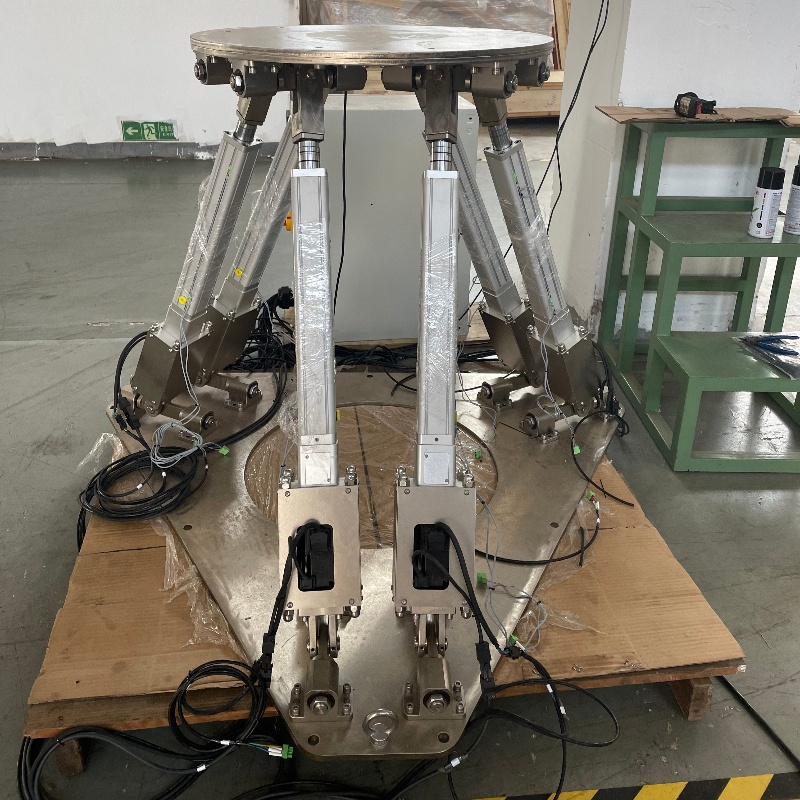

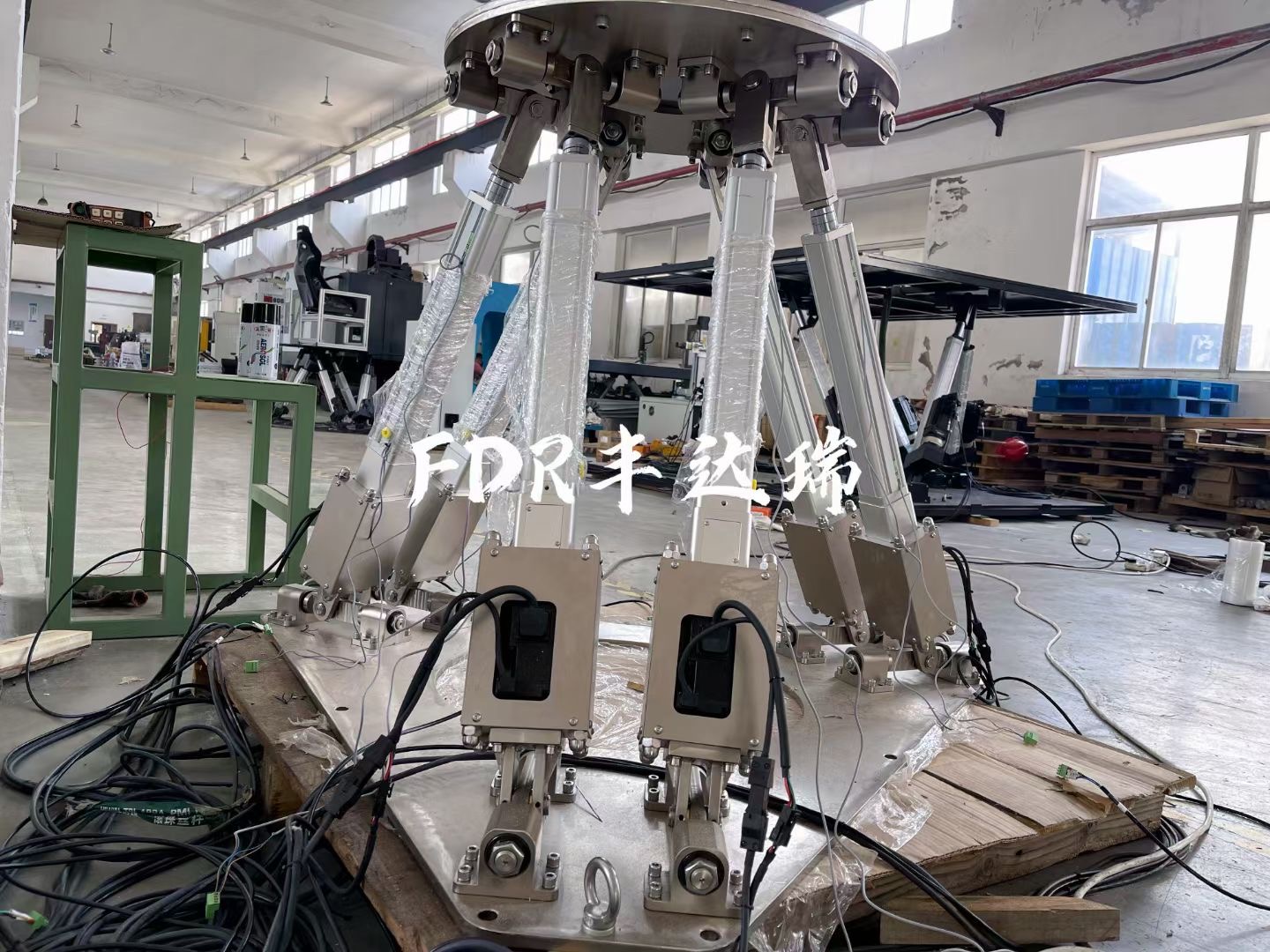

This high-speed lightweight 6 DOF motion platform is a professional simulation motion base, specially developed for small-sized simulation projects and high-speed motion scenarios. With a rated load of 100kg and a maximum speed of 1000mm/s, the platform adopts our self-produced servo electric cylinders as the driving unit, ensuring stable high-speed operation, high repeat positioning accuracy and ultra-quick dynamic response.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Configuration List of FDR 6DOF-100KG Payload:

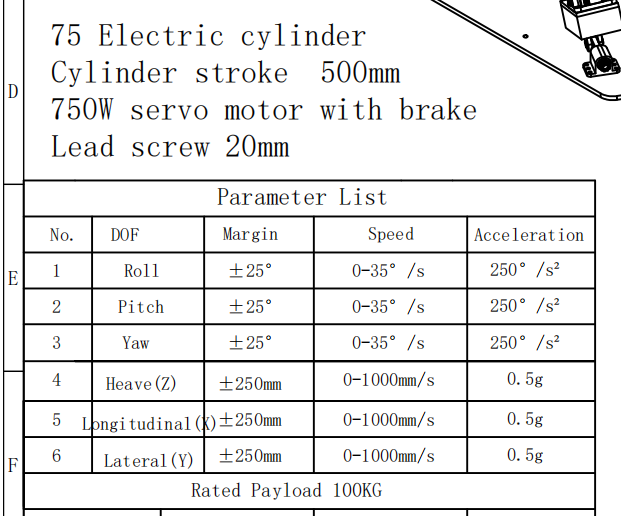

Parameters of FDR-6DOF-100KG:

100kg Rated Load — Stable bearing for small-sized simulation cockpit and equipment
1000mm/s High Speed — Real-time motion synchronization, quick dynamic response

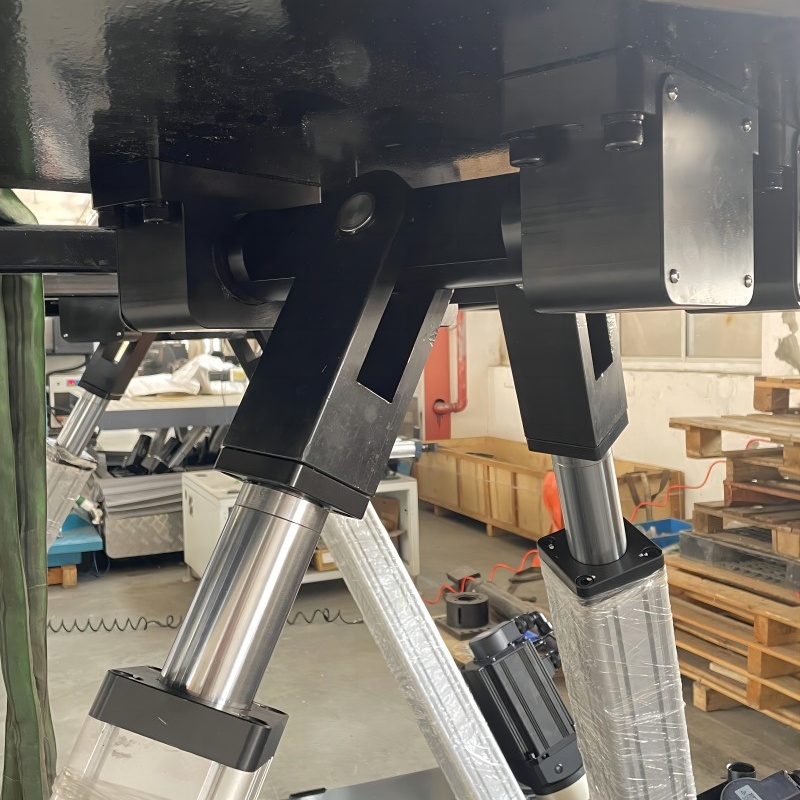

Servo Electric Cylinder Drive — Low noise, clean and maintenance-free
6-Axis Full Motion — Realize pitch, roll, yaw and translation movement
Compact & Space-Saving — Easy installation and simple debugging
Multi-Scenario Application — VR, small racing/flight simulation, laboratory testing
