FDR

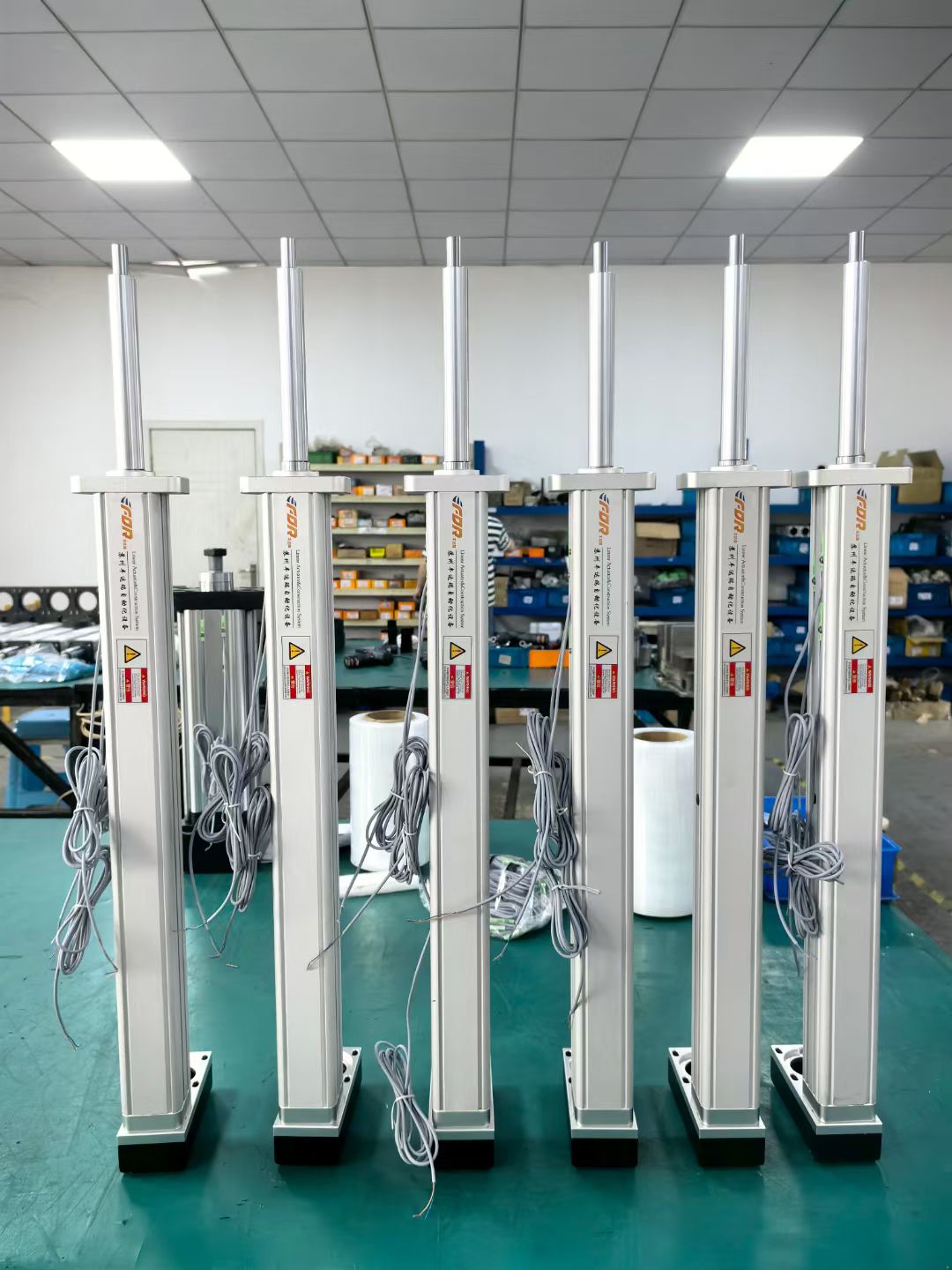

Parameters with 400kg Thrust Servo Electric Cylinder FDR065:
●
Series No. | FDR064 |
Thrust Force Range | ≤450kg |
Speed Range | ≤800mm/s |
Screw lead / Spindle pitch | 4mm/ 5mm / 10mm |
Ball screw diameter | Φ16 |
Piston rod diameter | Φ40 |
Stroke Range | ≤700mm |
Precision | ±0.02mm |
Working Temperature | -40°C--45°C |
IP Rating | IP65 |
Optional Motor | Servo motor, stepper motor |
Motor mounting | Inline / Parallel |
OEM parameters | Customized speed,stroke,output,thrust， color,installation method. |
Note: Servo motor and stepper motor could be equipped for the electric cylinder.

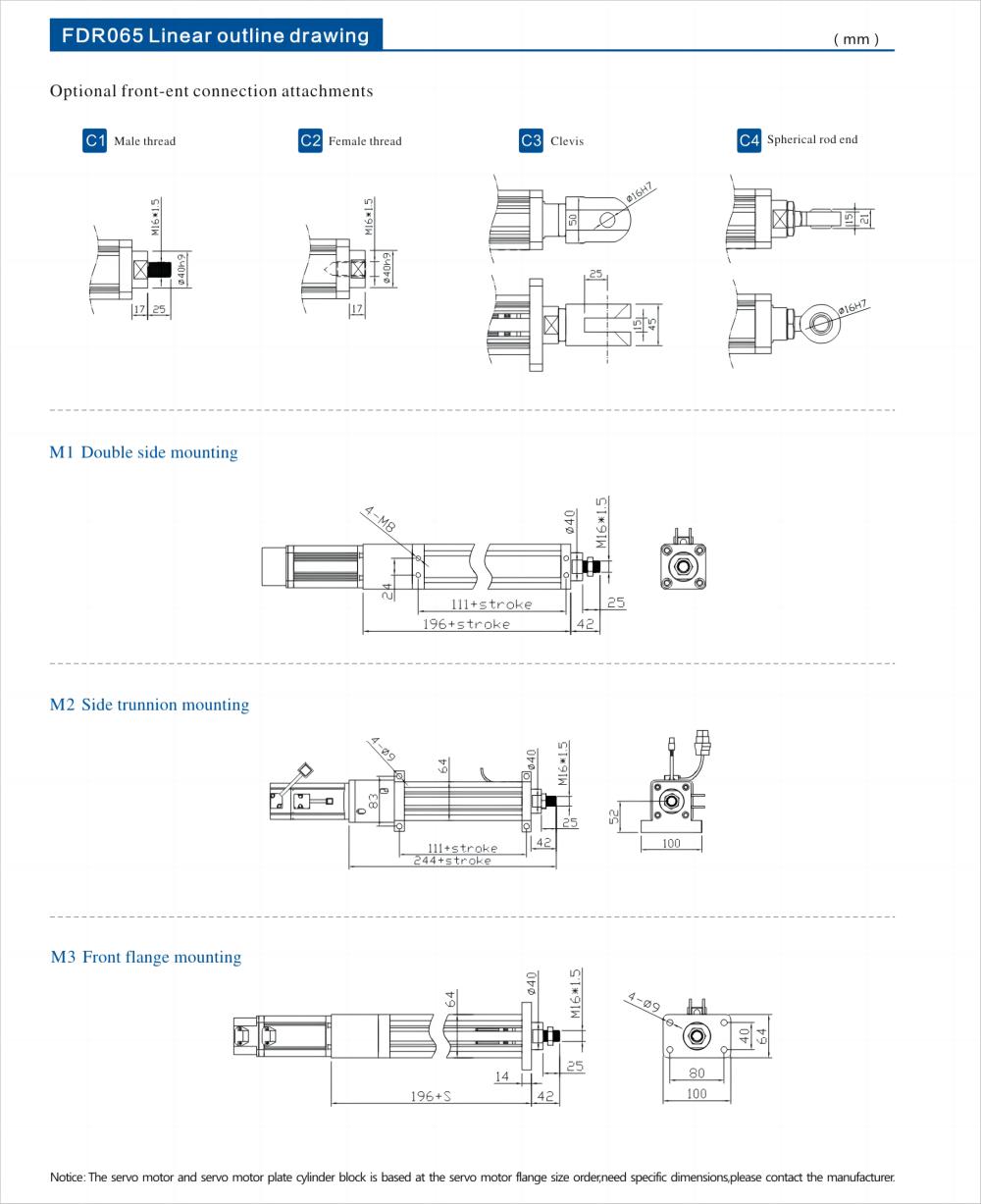

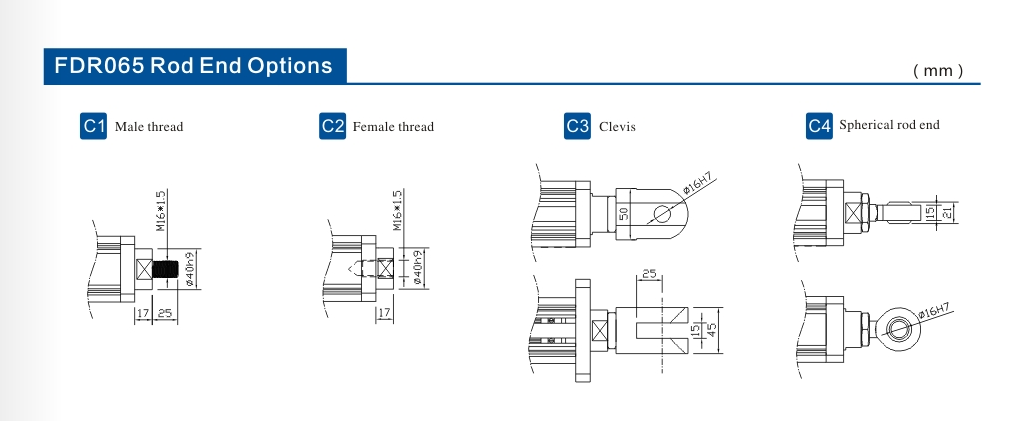

FDR Series Electric Cylinder Motor Mounting and Cylinder Mounting Options:
The advantages of a Servo Electric Cylinder:
High Precision & Controllability: Utilizing precision-ground ball screws, these cylinders achieve high positioning accuracy (e.g., repetition accuracy up to ±0.01mm to ±0.05mm) and smooth motion control . They offer programmable control over speed, force, and position, enabling complex motion profiles that are difficult to achieve with fluid power.
Integrated & Compact Design: Many modern electric cylinders feature an integrated design combining the actuator, motor, and servo drive in a single unit, eliminating the need for a separate control cabinet . This "smart" capability includes on-board electronics for features like position feedback, dynamic braking, and J1939 CAN bus communication for simplified setup and monitoring .
Exceptional Durability & Efficiency: Designed for long maintenance-free operation, with a travel life that can reach up to 600 km . They offer high energy efficiency (up to 95%) compared to pneumatic systems and support a 100% duty cycle for continuous operation in demanding applications . High-end models feature IP66 or IP69K ratings, providing resistance to dust, water, and harsh environmental conditions .
Clean & Low Maintenance: As an all-electric solution, it eliminates the risks of hydraulic fluid leaks and the need for compressors, filters, and valves associated with pneumatics. This results in a cleaner operating environment, reduced maintenance costs, and lower total cost of ownership .
High Load Capacity with Compact Footprint: Despite its 500mm stroke, these actuators can deliver substantial force, with some models capable of handling dynamic loads of up to 6 kN or even 16 kN, providing a powerful and space-saving alternative to bulky hydraulic cylinders
Servo Electric Cylinder can be use of the following applications:
Industrial Automation: Widely used in factory automation for pick-and-place operations, assembly line material handling, packaging machinery, and feeding systems. The 500mm stroke is ideal for transferring components between workstations or positioning items for processing .
Mobile Machinery & Off-Highway Vehicles: Well-suited for agricultural equipment (e.g., implement control), construction machinery (e.g., blade positioning, gate control), and material handling vehicles, leveraging their high efficiency, durability, and 24V DC power compatibility .
Specialized Industrial Tasks: Applied in valve and damper control for flow regulation, as well as in industrial press and lifting platforms where precise force control and holding capabilities are required .
Medical & Robotics: Utilized in medical equipment like hospital beds, diagnostic tables, and surgical robots where clean, quiet, and ultra-precise linear motion is critical. Also found in collaborative robots and automated guided vehicles (AGVs) for various actuation tasks .
High-Speed & High-Dynamic Applications: Certain electromechanical cylinder series are designed for extremely high speeds (up to 5000 mm/s), making them suitable for testing rigs, dynamic simulators, and high-speed gantry systems in electronics manufacturing
