6 Axis Motion Platform 300kg Payload for Racing & Flight Simulation FDR

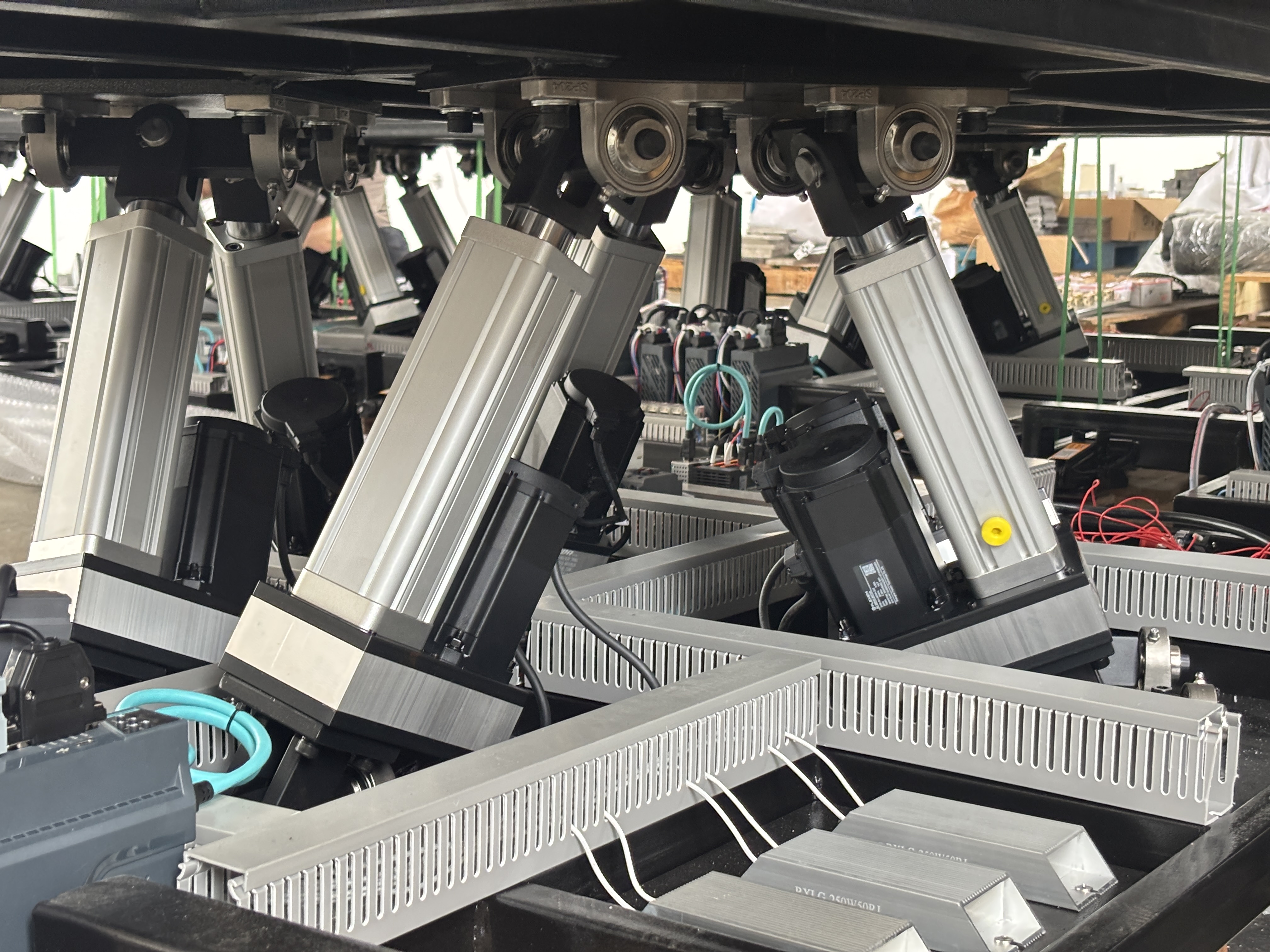

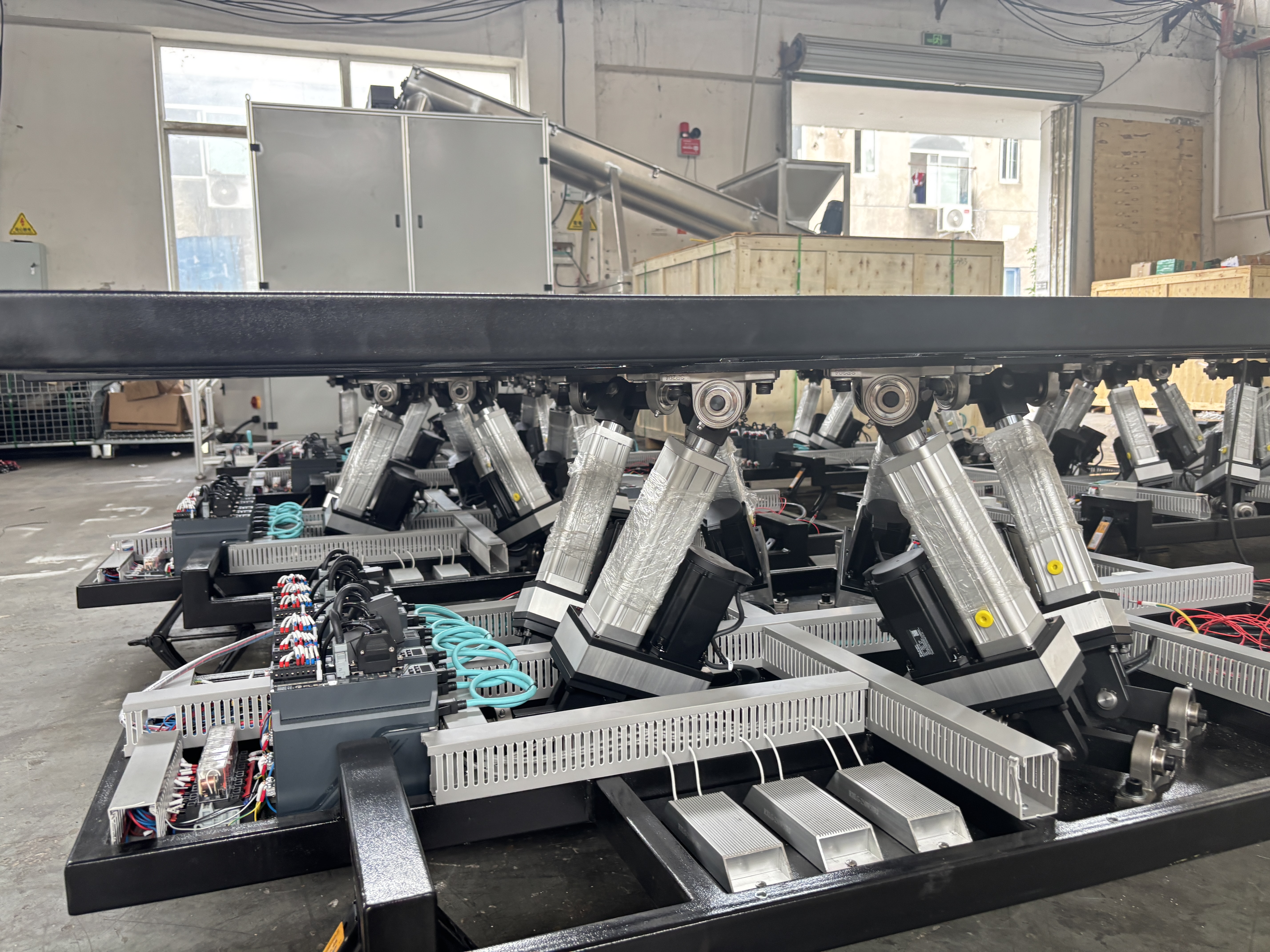

This lightweight 6 DOF motion platform is one of our hot-selling simulation motion bases, specially developed for medium and small simulation projects. With a rated load of 300kg, the platform adopts our self-produced servo electric cylinders as the driving unit, ensuring stable movement, high repeat positioning accuracy and quick dynamic response.
The platform realizes six-degree-of-freedom synchronous motion, including pitch, roll, yaw, vertical lifting, horizontal forward and backward movement. It can realistically simulate vehicle cornering, drifting, turbulence, take-off and landing, and various road condition changes. Compared with hydraulic platforms, this electric motion platform has lower noise, zero oil leakage, simpler maintenance and higher safety.
