Racing Simulation 6 Axis Motion Platform 500kg Payload FDR

Our 6-axis six degrees of freedom motion platform is a professional solution tailored for racing simulation, integrating high performance and realistic experience to meet the needs of professional racing training, e-sports and entertainment simulation.
With a maximum load capacity of 500kg and a 400mm working stroke, the platform is perfectly matched with various racing simulator cockpits, supporting stable operation even under long-term high-frequency motion. Adopting servo electric drive and closed-loop control system, it achieves precise motion control, smooth operation and low noise, which can quickly and accurately simulate the dynamic changes of racing, such as acceleration push, braking deceleration, cornering tilt and road bump, restoring the real racing driving feeling to the greatest extent.

Quantity:
Availability:





Inquire Add to Basket

Product Description

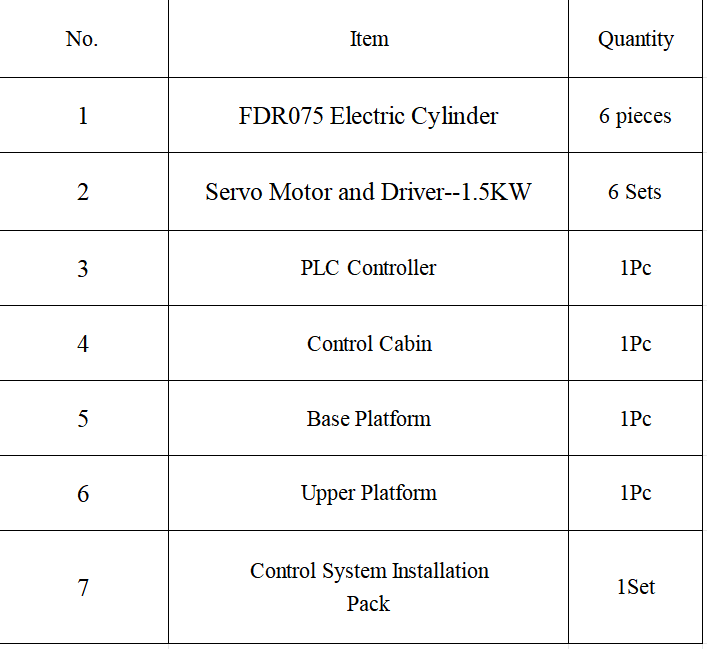

Configuration List of FDR 6DOF-500KG Payload:

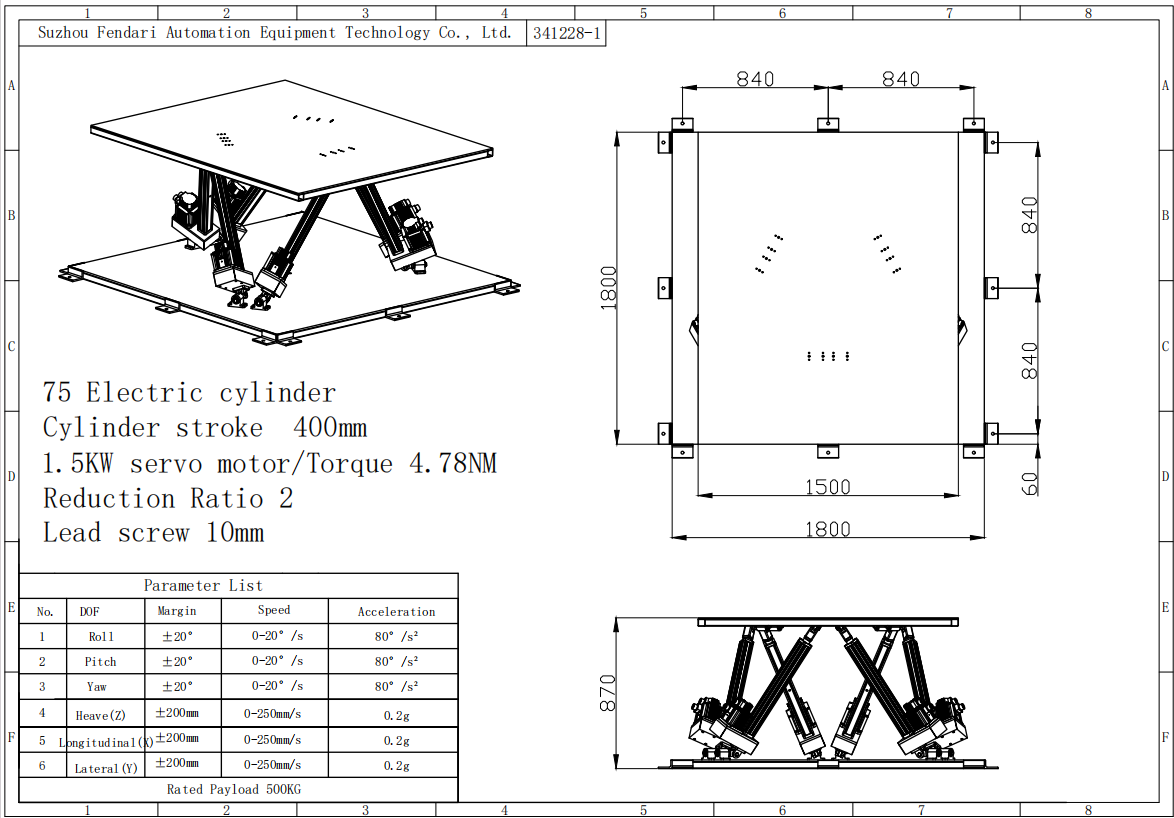

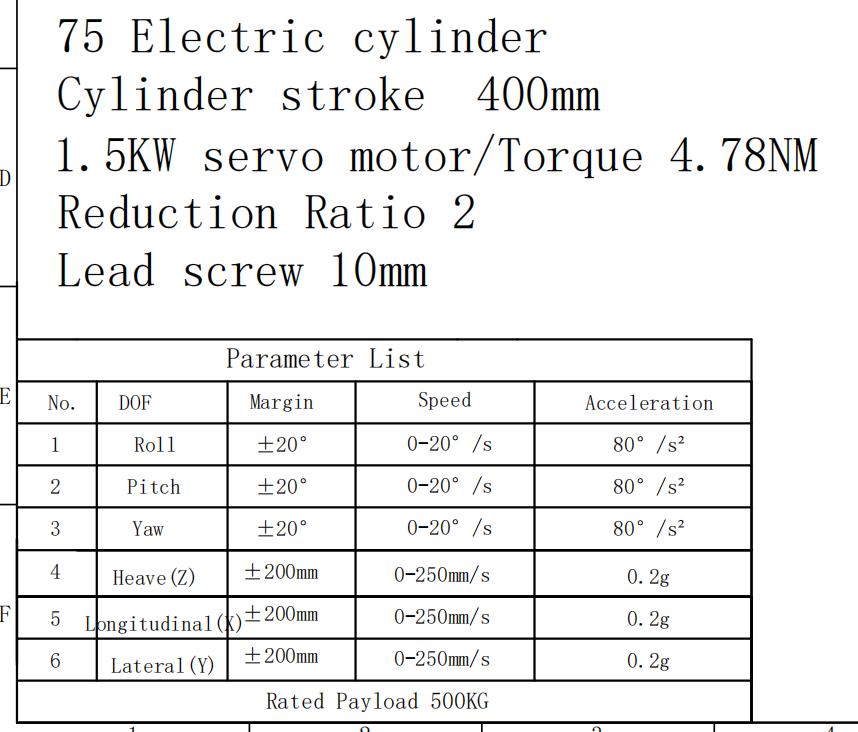

Parameters of FDR-6DOF-500KG:

The platform is easy to install and debug, and can be seamlessly connected with mainstream racing simulation software. It is widely applicable to professional racing training institutions, e-sports clubs, entertainment centers and personal high-end racing simulation customization. We support customized adjustment of load, stroke, motion speed and control mode to meet your specific project requirements. With professional technical support and perfect after-sales service, we provide a one-stop solution for your racing simulation project.
