High Load 6 Axis Motion Platform Six Degrees of Freedom 3000kg Simulation Equipment FDR

Our 6-axis six degrees of freedom motion platform is a professional dynamic simulation solution tailored for automotive driving simulation scenarios.

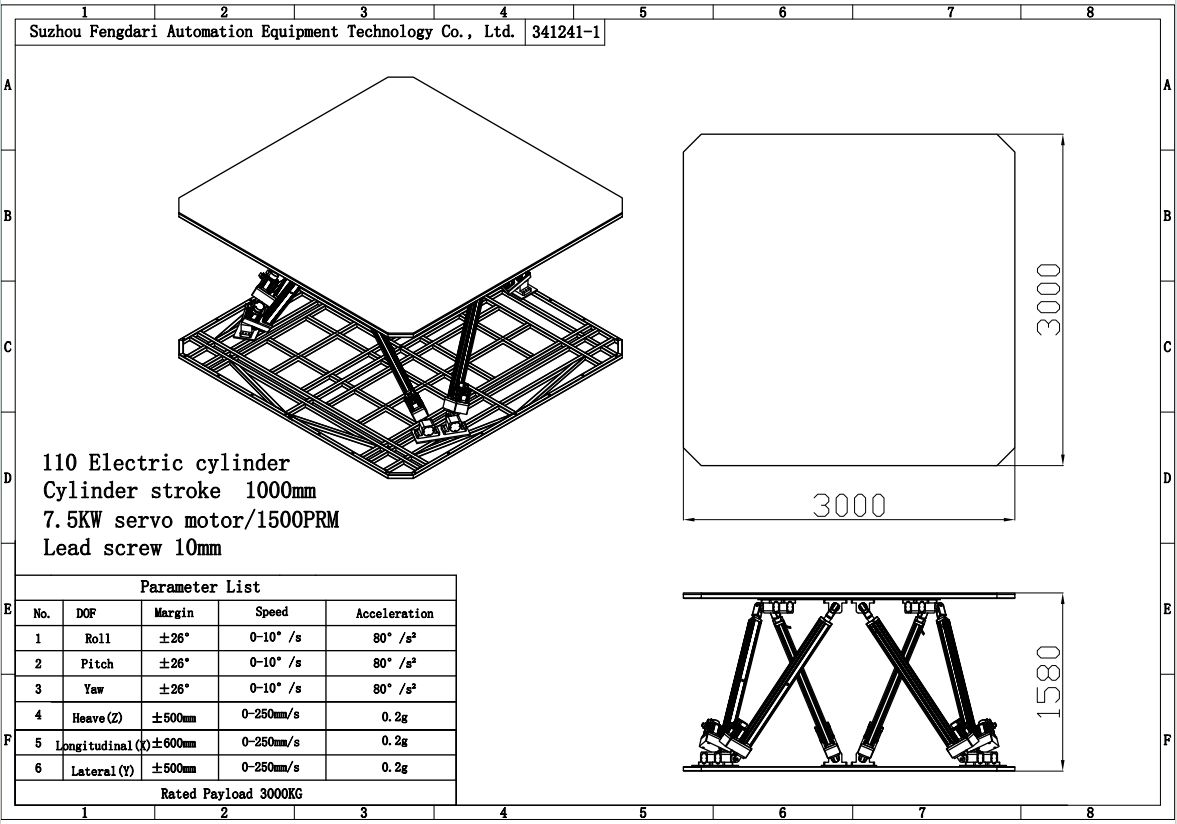

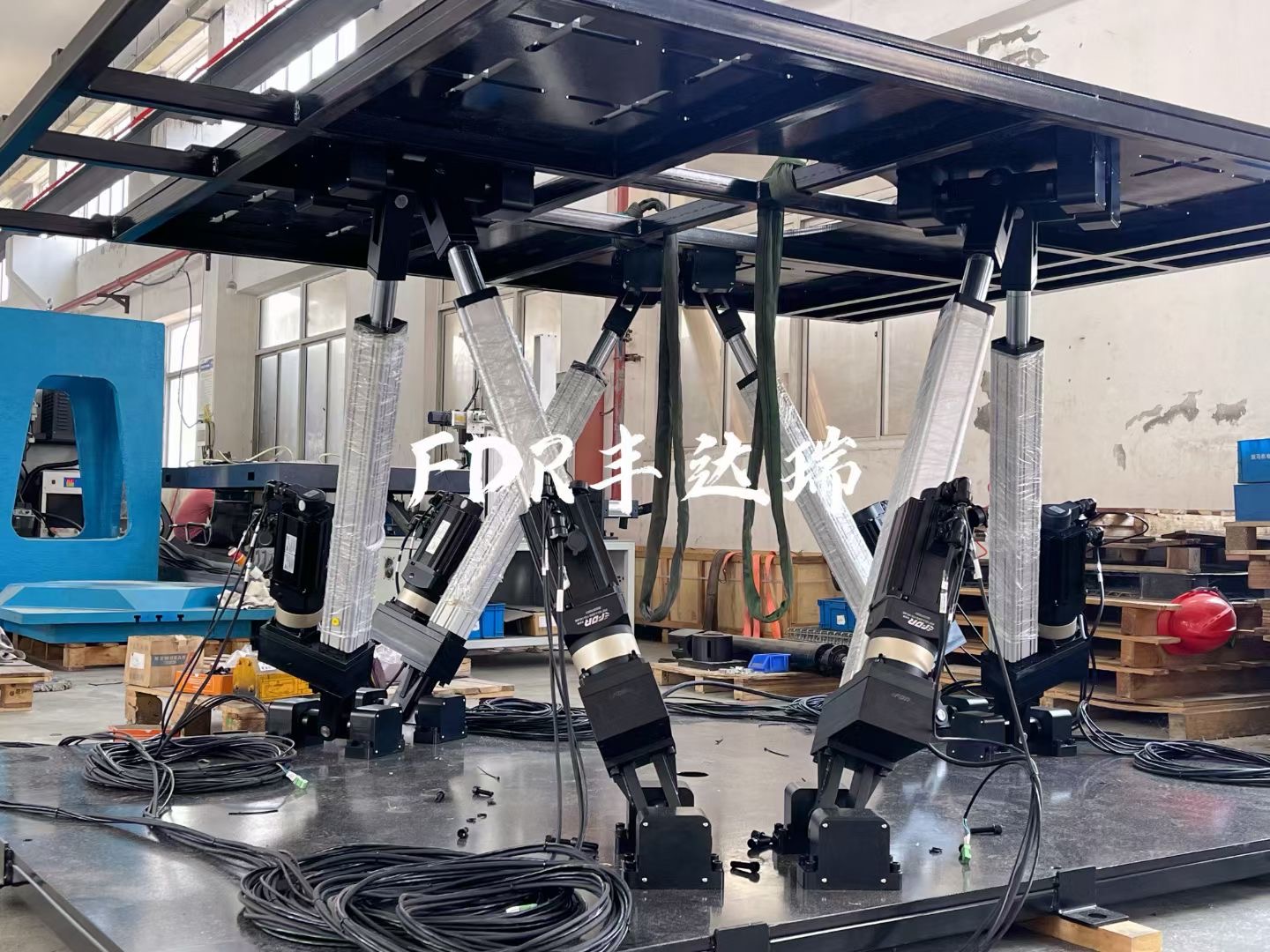

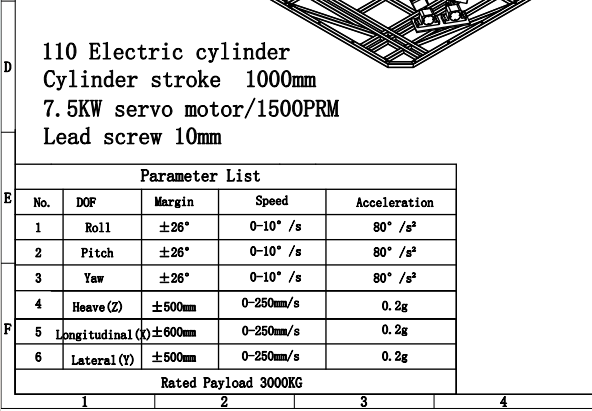

Equipped with high-performance servo electric actuators, the platform supports 1000mm long stroke and 3000kg heavy load capacity. It realizes multi-angle collaborative movement including pitching, rolling, yawing, lifting and horizontal displacement.

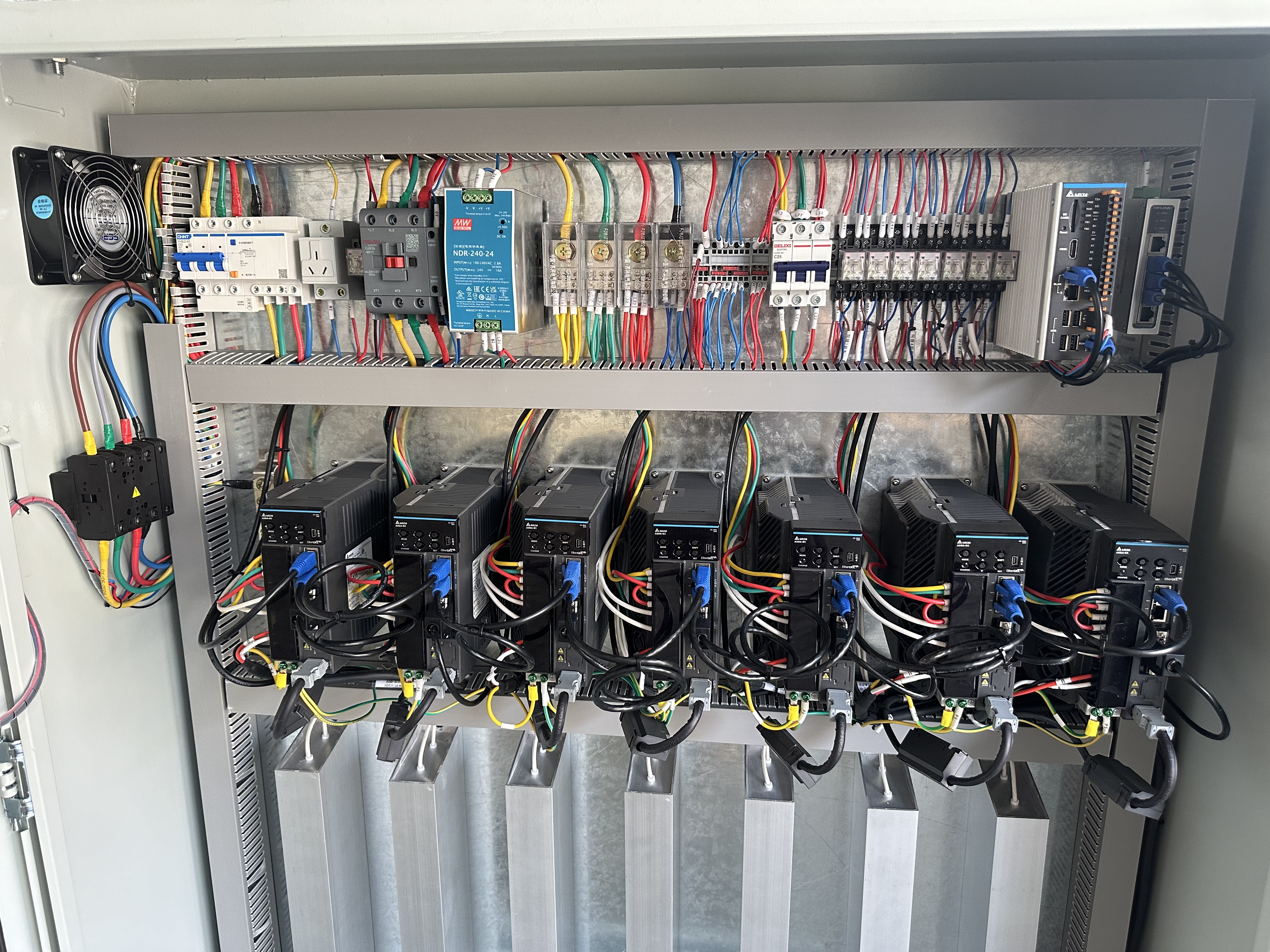

With closed-loop servo control system, the equipment features high positioning accuracy, smooth motion, low noise and strong bearing capacity. It can accurately simulate various complex road conditions such as bumpy roads, slopes and special driving postures, providing highly realistic immersive simulation experience.

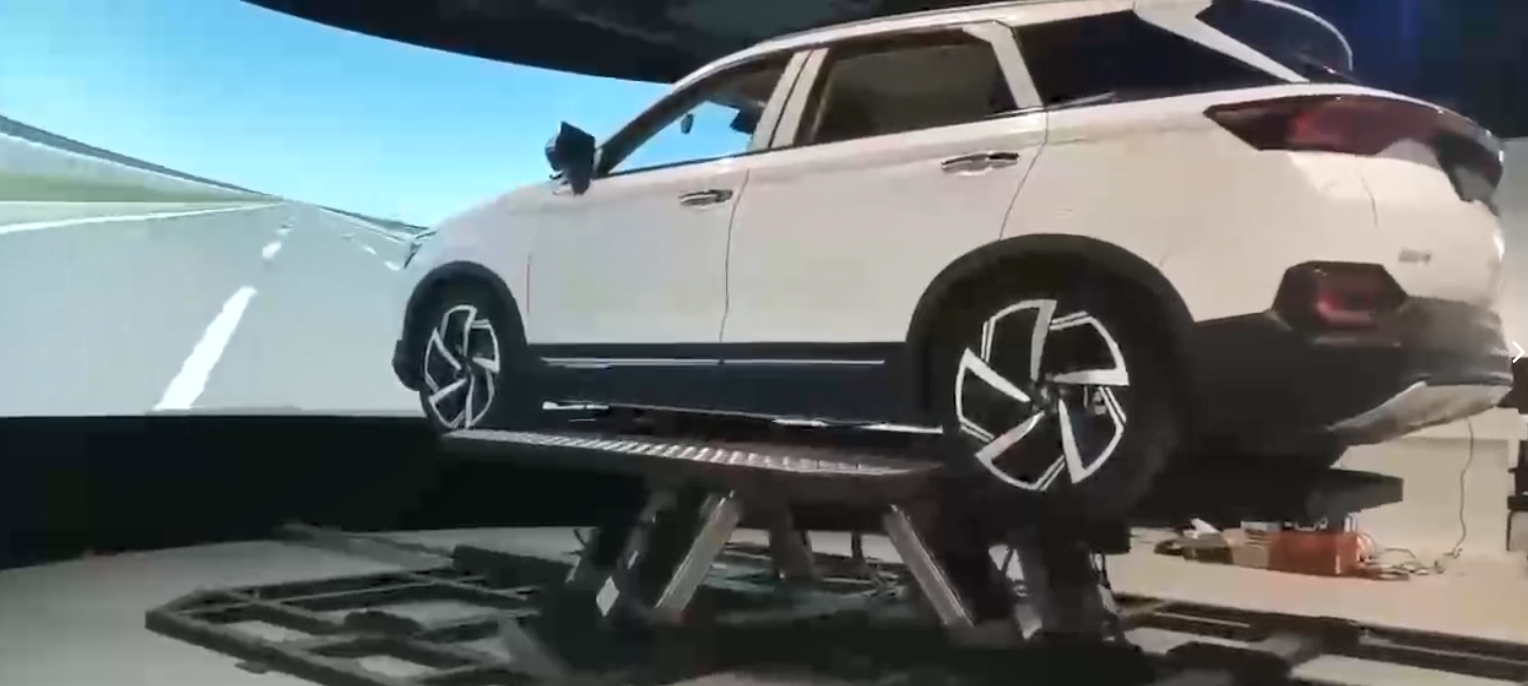

Widely applicable to automobile driving simulator, vehicle dynamic test, driver training system, new energy vehicle R&D test and intelligent cockpit demonstration. Customized stroke, load and control system are available to meet different project requirements.
