FDR
Parameters with 4000kg Thrust Servo Electric Cylinder FDR110:
Series No. | FDR110 |
Thrust Force Range | ≤4000kg |
Speed Range | ≤500mm/s |
Screw lead / Spindle pitch | 10mm/20mm |
Ball screw diameter | Φ40 |
Piston rod diameter | Φ60 |
Stroke Range | ≤1700mm |
Precision | ±0.01mm |
Working Temperature | -40°C--45°C |
IP Rating | IP65 |
Optional Motor | Servo motor, stepper motor |
Motor mounting | Inline / Parallel |
OEM parameters | Customized speed,stroke,output,thrust， color,installation method. |
Note: Servo motor and stepper motor could be equipped for the electric cylinder.
FDR Series Electric Cylinder Motor Mounting and Cylinder Mounting Options:
FDR110 electric cylinder rod end option:
Detailed Advantages
1. Direct Hydraulic Replacement
Our electric cylinder shares the same footprint as standard hydraulic cylinders, allowing for tool-free mechanical upgrades without redesigning your machinery. It utilizes standard hydraulic cylinder accessories, making transition simple and cost-effective .
2. High Dynamics & Closed-Loop Control
Integrated with a servo motor, it supports three control modes: constant thrust, constant pressure, and position control. The high rigidity and precise force feedback make it ideal for complex assembly tasks like servo press fitting .
3. Maintenance-Free & Long Life
The elimination of hydraulic oil, seals, and coolers drastically reduces maintenance costs. High-quality ball screws and angular contact bearings ensure a long operational life even under 4000kg of continuous load.
4. Energy Efficient
With mechanical efficiency up to 90% , it significantly reduces energy bills compared to constantly running hydraulic power units . It only consumes power during motion.
Typical Applications
· Servo Press Fitting: EV battery cell pressing, bearing installation, bushing pressing .
· Material Testing: Static and dynamic load tests for aerospace and automotive components.
· General Automation: Material pushing, lifting, cutting head positioning, mold clamping.
· Heavy Machinery: Gate opening/closing, feeder positioning.

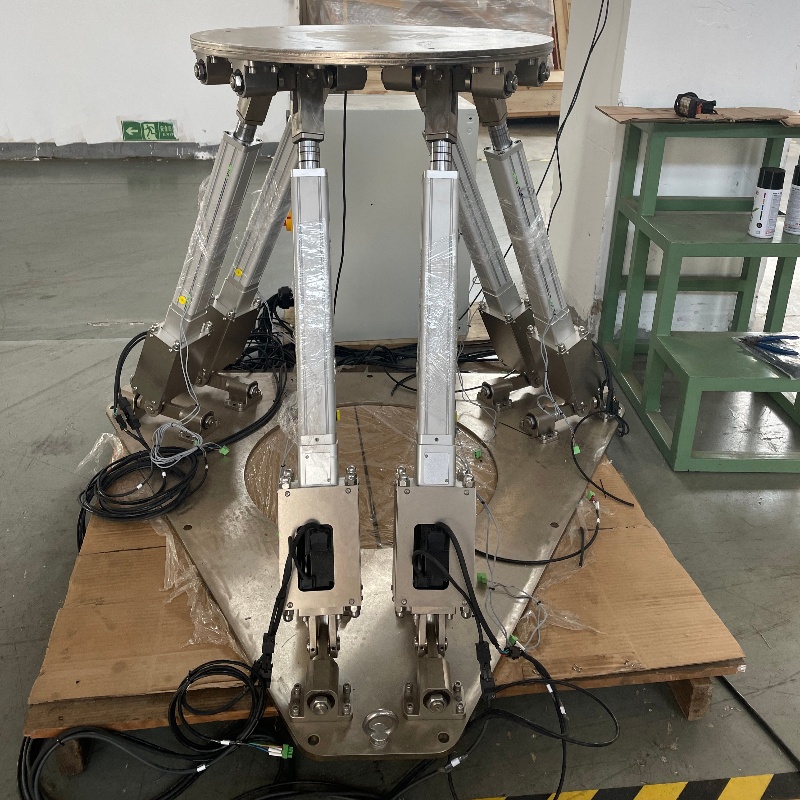

· Entertainment: VR platforms and motion simulators .
