Why 6DOF Platform Working Envelope & Singularity Determine Simulation Accuracy?

Views: 0     Author: Site Editor     Publish Time: 2026-09-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
Why 6DOF Platform Working Envelope & Singularity Determine Simulation Accuracy?

In flight simulation, vehicle road reproduction, seismic testing, and marine wave simulation, many 6DOF Stewart platform projects face the same confusing problem: the platform meets the load specification but still produces jitter, delayed response, distorted motion, and frequent overload alarms during dynamic operation.

Most purchasing engineers focus only on static load, stroke, and speed parameters. In fact, the core factors that control long-term simulation fidelity are working envelope coverage and kinematic singularity avoidance.

Based on Gough-Stewart parallel mechanism theory and our factory's 2000-hour dynamic test data, this article reveals why many 6DOF platforms fail in high-fidelity simulation and provides practical parameter selection standards for industrial and simulator projects.

1. Core Theory: Working Envelope & Singularity of 6DOF Stewart Platform

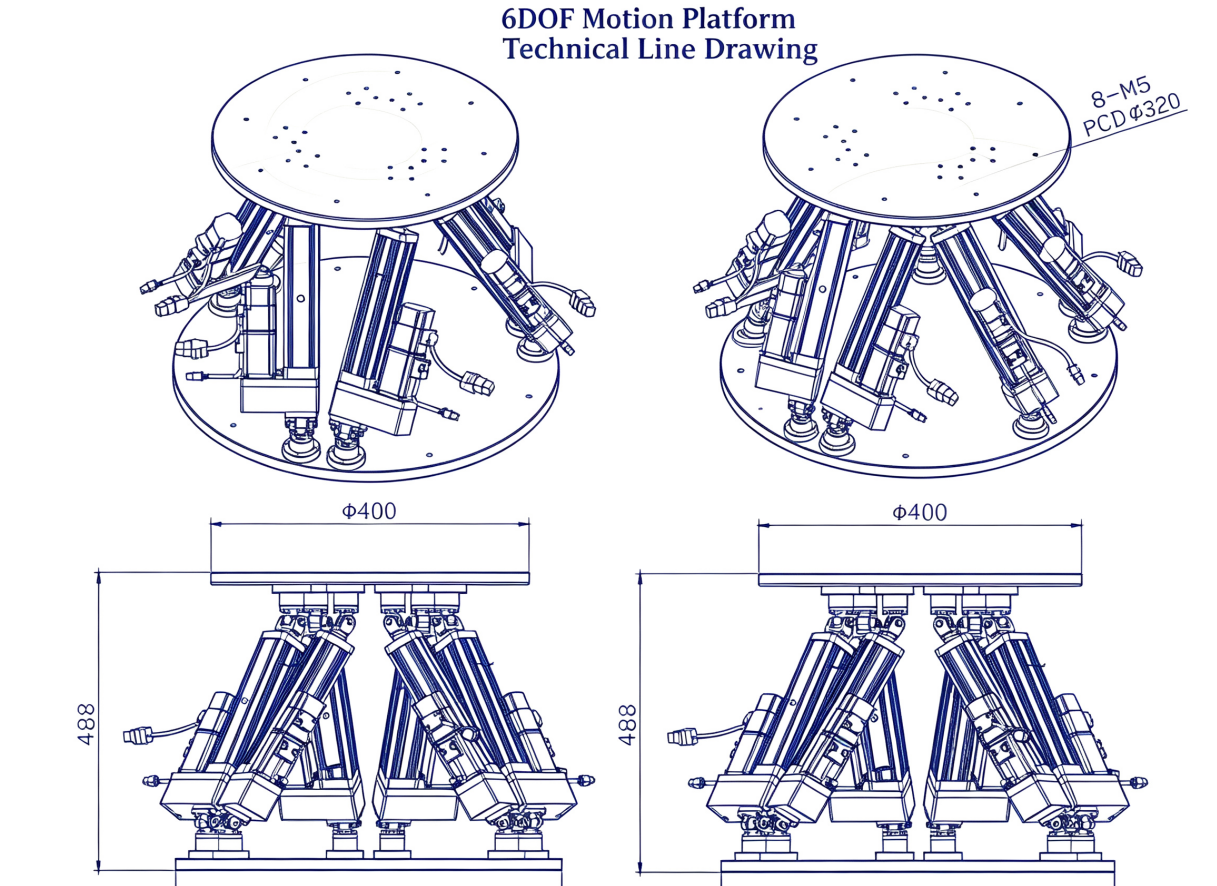

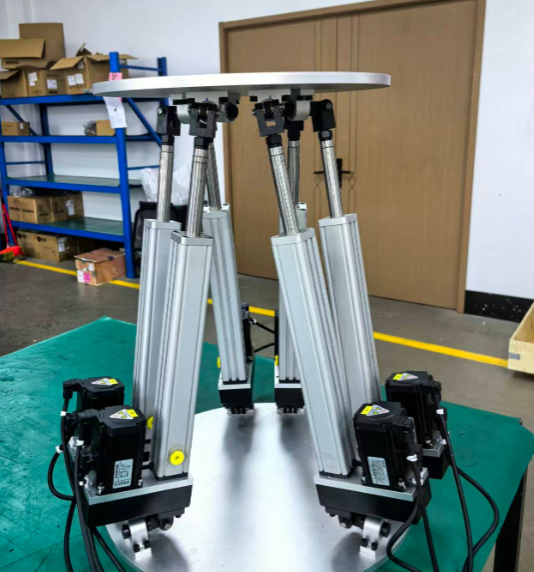

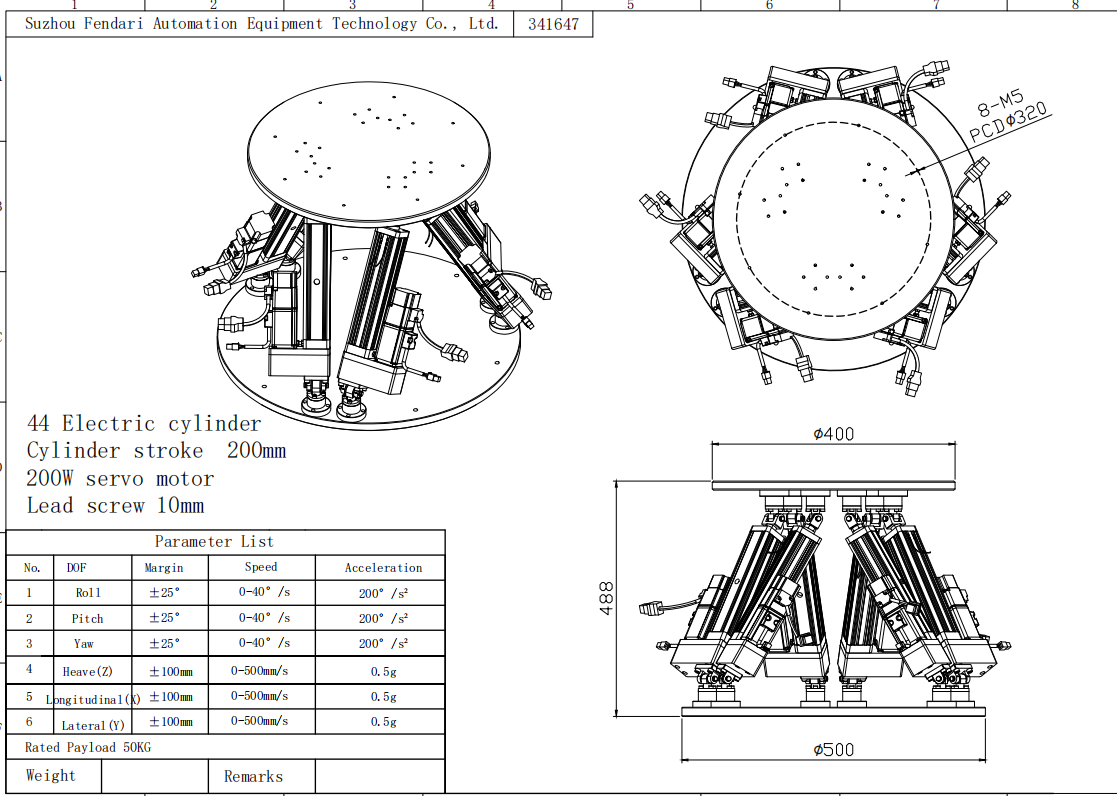

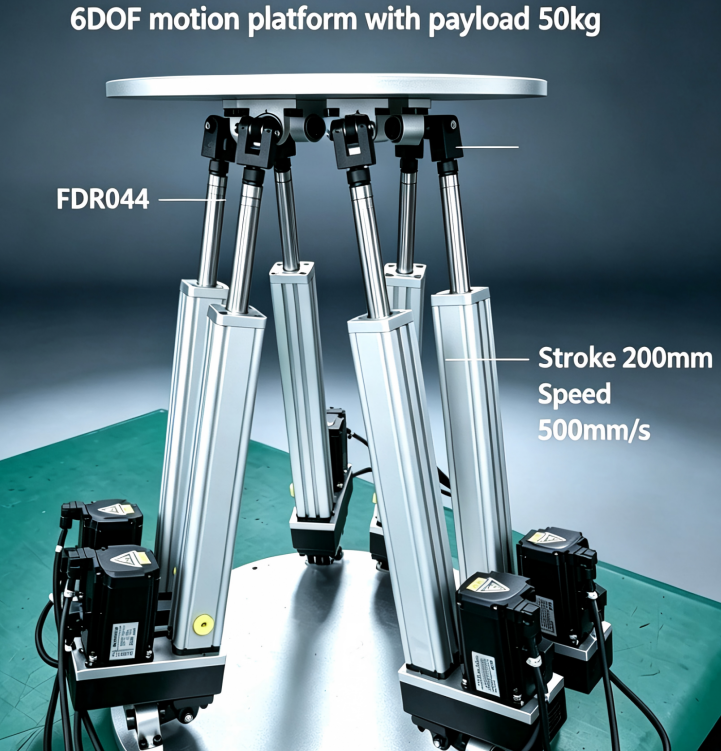

Different from serial robotic arms, the 6DOF motion platform is a typical fully constrained parallel mechanism. Six servo electric cylinders jointly support and drive the upper platform to complete 6-dimensional motion (X, Y, Z, Roll, Pitch, Yaw).

Two core mechanical characteristics decide the platform’s dynamic performance:

1. Working Envelope

It refers to the maximum spatial range of safe and stable motion. All attitude movements must be completed within the envelope. Once the motion exceeds the boundary, the actuator will reach the stroke limit, resulting in forced distortion of the motion curve.

2. Kinematic Singularity

Singularity is the dangerous posture of the parallel mechanism. When the platform approaches a singular point, the Jacobian matrix condition number increases sharply. The same motion displacement requires exponentially increased cylinder thrust and speed. This directly causes jitter, synchronization error surge and system overload.

Professional conclusion: Load capacity only defines static bearing performance. Working envelope and singularity margin define dynamic simulation performance.


2. Factory Verified Test Data: Stroke, Acceleration vs Simulation Fidelity

We adopted a standard 500kg-class electric 6DOF platform for full-cycle dynamic testing. We recorded synchronization error, motion smoothness and anti-overload performance under different stroke and acceleration configurations.

Z-axis Effective Stroke

Max Safe Acceleration

Average Sync Error

Motion Performance Evaluation

±100 mm

≤1.2 m/s⊃2;

0.10–0.15 mm

Only suitable for low-frequency marine simulation; high acceleration easily touches the singularity boundary

±150 mm

≤2.0 m/s⊃2;

0.03–0.06 mm

Balanced solution for vehicle simulation and general industrial testing

±200 mm

≤3.0 m/s⊃2;

0.01–0.025 mm

High-fidelity solution for racing simulation and seismic dynamic testing

Key Test Findings

When acceleration exceeds 2.2 m/s⊃2; with insufficient stroke, the platform continuously approaches singular poses, and the synchronization error increases by nearly 3–5 times.

Platforms with small envelope can maintain smooth static posture but fail completely in dynamic turbulence and road vibration reproduction.

Excessively large stroke without frame stiffness upgrade will cause micro-deformation and reduce simulation consistency.


3. Three Most Common Engineering Misjudgments in 6DOF Platform Selection

Misjudgment 1: Sufficient load equals qualified simulation performance

Static load only reflects the bearing capacity of the mechanical structure. Dynamic simulation relies on envelope margin and singularity avoidance capability. Many high-load platforms still jitter severely during high-speed attitude switching.

Misjudgment 2: Blindly pursuing maximum stroke

Larger stroke expands the working envelope, but it also raises the Jacobian condition number. Without matching high-rigidity frames and high-response servo cylinders, oversized strokes will cause unstable dynamic output.

Misjudgment 3: Ignoring pre-simulation of kinematic boundaries

Many integrators confirm parameters only by samples, without conducting inverse kinematics simulation. After on-site installation, they find that certain critical simulation postures cannot be realized, resulting in project delays.


4. Professional Matching Guide for Typical Scenarios

Vehicle & Racing Simulation

Focus on high acceleration and rapid attitude correction. Medium stroke + large singularity margin is required to ensure smooth road bump feedback without motion distortion.

Flight Simulation Training

Require high synchronization accuracy and continuous dynamic stability. Strict envelope calibration is necessary to avoid posture deviation during long-hour training.

Seismic & Industrial Vibration Testing

Prioritize large Z-axis stroke and low-frequency stability, ensuring full coverage of the vibration displacement spectrum.

Marine Wave Simulation

Small-angle and long-cycle swing is mainstream. Moderate stroke is enough; excessive stroke will cause redundant mechanism vibration.

5. Conclusion

The core competitiveness of a high-fidelity 6DOF motion platform is not heavy load or large stroke, but reasonable working envelope planning and effective singularity avoidance design.

Qualified simulation equipment must complete kinematic simulation, boundary verification and dynamic matching before production, rather than relying only on basic mechanical parameters.
