Many automation engineers run into a common headache when designing linear motion systems: standard servo electric cylinders work perfectly under pure axial push‑pull force, but performance drops quickly once side‑load, offset load or overturning moment appears. The screw shaft will suffer extra lateral stress, causing shaking during movement, accelerated wear of ball screw, reduced positioning accuracy and even early failure.

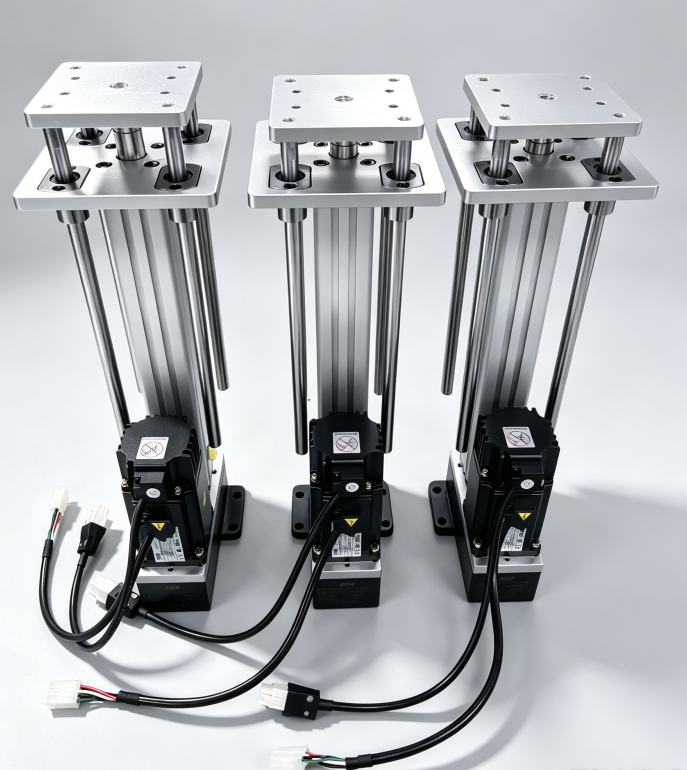

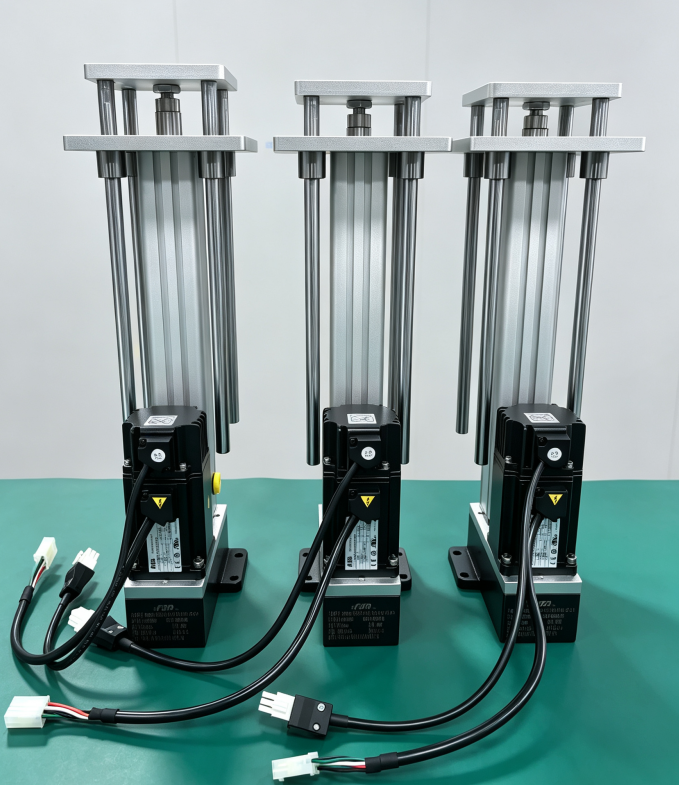

The guided servo electric cylinder (servo actuator with built‑in parallel guide rods) is developed exactly to solve this industry pain point. Instead of assembling separate external guide mechanisms on your machine frame, this unit integrates high‑precision linear guide rods together with the ball‑screw servo cylinder into one compact assembly. It shares lateral force through the guide rods and keeps the ball‑screw only responsible for pure axial driving force.
1. Strong resistance to side load & overturning moment The two parallel guide rods bear almost all radial offset forces. The internal ball‑screw is protected from lateral bending stress. When your end‑plate carries an offset workpiece or connecting rod for multi‑axis motion mechanism, the actuator will run smoothly without jitter. This is the biggest difference compared to ordinary non‑guided servo cylinders.
2. Higher running stability & consistent positioning accuracy Thanks to the constraint from guide rods, the output plate maintains a straight travel path. It avoids swinging at high‑speed reciprocating movement. Typical repeat positioning accuracy can reach ±0.01 mm. No extra alignment work is required after mounting the cylinder itself, reducing cumulative assembly errors from customer‑added external guides.
3. Simplify mechanical design & shorten machine‑building cycle For equipment designers, you no longer need to purchase, install and calibrate a separate set of linear guide rails beside each electric cylinder. The guiding function is already built‑in. This saves your overall machine space, reduces the number of spare parts on your BOM list and cuts assembly & debugging time. Especially good for compact‑layout equipment.
4. Extended service life for ball‑screw & internal transmission parts Lateral force is the main killer of ball‑screw life for servo cylinders. Once side‑loads are isolated by guide rods, friction and fatigue of the screw are greatly reduced. Under the same working cycle conditions, the service lifespan of the actuator can be significantly improved, lowering your long‑term maintenance cost.
5. Flexible customization capability Stroke, rated thrust, motor installation (inline or folded/parallel motor layout), mounting flange, and cable connector can all be customized according to project requirements. It supports EtherCAT, Modbus and other mainstream industrial bus communication for PLC control integration.
✅ Multi‑DOF motion simulation platforms This is one of our most popular applications. For 3‑DOF /6‑DOF motion platforms (like agricultural testing simulators, small‑size motion simulators), every single servo actuator always bears complicated partial offset load during platform tilting & swinging. Guided servo cylinders eliminate deflection, keeping the whole platform movement smooth.
✅ Precision pressing & assembly jigs Component press‑fit, bearing insertion. Where the pressing plate may have offset workpiece loading. Anti‑tilt guide rods guarantee vertical pressing path to avoid defective assembly results.
✅ Testing & fatigue test‑bench equipment Reciprocating durability test stands for plastic parts, spring cycling tests. High‑frequency back‑and‑forth operation needs stable straight movement without wobble.
✅ Special agricultural automation machinery Automatic pruning mechanism lifting unit, crop‑sampling test jigs out in field‑simulated test lab. It copes well with occasional unexpected side force from plant contact.
✅ 3C & new‑energy automation production line Lifting & positioning fixtures for battery module assembly. Compact integrated structure helps save valuable workspace inside production machines.
Select ordinary servo electric cylinder: If your application only has pure axial push‑pull load, and your machine frame already has independent external guiding mechanism.
Select guided servo electric cylinder: If your working condition has offset load, side‑force, overturning moment; or you want to omit external guide rails to simplify the mechanical structure.
Guided‑rod servo electric cylinders are not just an upgraded variant of linear actuators; they provide a practical integrated solution for a long‑standing mechanical pain point. If your next automation or motion‑simulation project is troubled by side‑load deflection of linear actuators, this product is well worth evaluating. Our factory supports custom stroke, thrust, mounting form and bus interface to fit your project specifications. Contact our engineering team for detailed technical data and CAD drawings.
