Many simulation test rigs and 6‑DOF motion platforms demand precise multi‑axis coordination. Quite a few projects pass hardware checks but deliver unsatisfactory dynamic performance. The root cause is frequently the communication bus rather than thrust, stroke or speed of electric cylinders.
Pulse control or Modbus‑RTU are still widely adopted to drive multiple actuators for cost reasons, yet they bring obvious limits for high‑performance systems:
Large synchronization deviation. Latency accumulates with more axes. Synchronization error can reach tens of milliseconds, causing shaking and attitude offset on 6‑DOF platforms.
Heavy wiring work. Pulse control requires separate wiring for each axis. A 6‑axis system comes with massive cables, increasing installation and troubleshooting workload.
Long commissioning cycle. Parameters need manual adjustment axis‑by‑axis, sometimes taking weeks for large motion systems.
Limited feedback. Actual position, load and temperature data cannot be read in real‑time, leaving little chance for early fault warning.
Native EtherCAT real‑time bus servo cylinders provide reliable solution for multi‑axis systems. Our lab test for 6‑axis configuration shows:
Cycle synchronization time: 1 ms, multi‑axis synchronization error ＜ 100 μs
Support dozens of actuators daisy‑chained, drastically reducing wiring
Bidirectional real‑time data: position, thrust, current and fault codes transmitted to controller
Compatible with mainstream motion controllers, supporting position, speed and force control modes

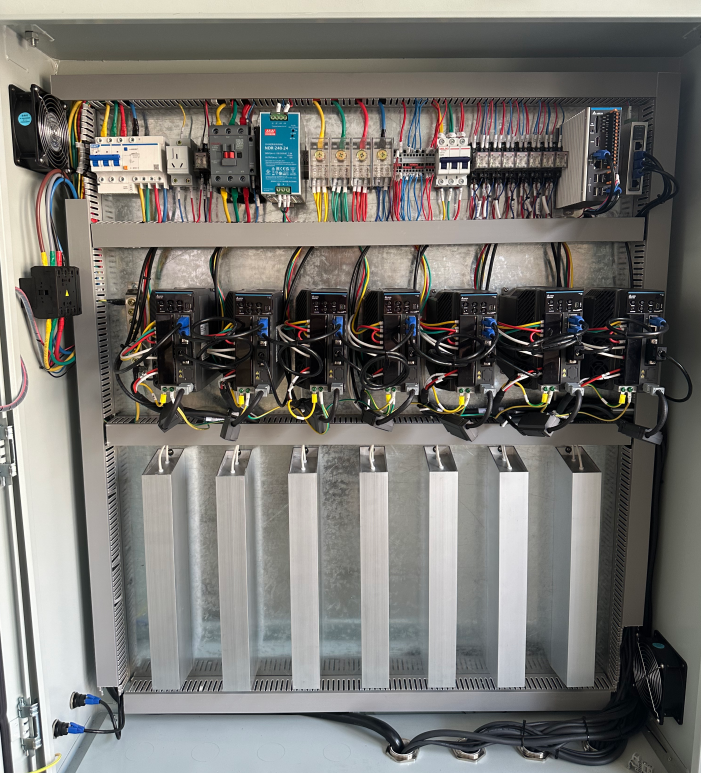

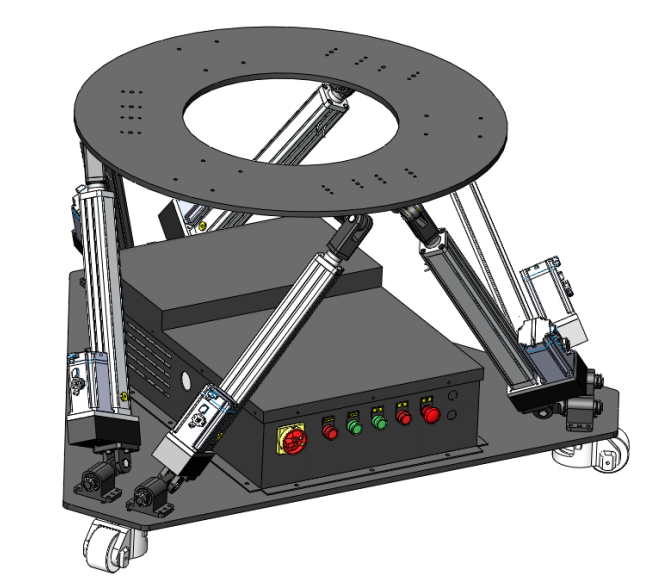

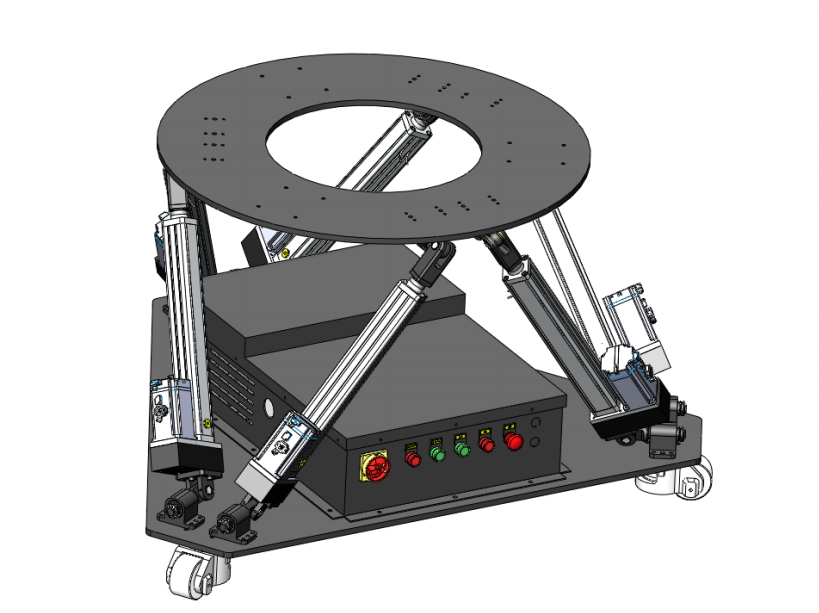

When applied to 6‑DOF motion platforms, six servo electric cylinders coordinate tightly via EtherCAT. Attitude switching, turbulence simulation and high‑frequency reciprocating movements run smoothly with high repeatability. This solution also fits durability test benches and vibration simulation equipment.
Choose actuators with native EtherCAT drive Some products rely on external conversion modules to realize EtherCAT. Conversion modules introduce extra latency and instability. For high‑precision multi‑axis projects, select servo cylinders with controller‑level native EtherCAT CoE support.
Match controller and bus parameters Hardware alone cannot guarantee high synchronization performance. Your motion controller shall support EtherCAT CoE. Proper DC distributed clock setting and disabling unnecessary background messages are required to keep synchronization error within target range. Many projects fail at this configuration step.
Standardize cables and field installation Electromagnetic interference in industrial sites damages bus stability. Use shielded industrial Ethernet cables, avoid running alongside high‑power cables. Evaluate latency impact when adding repeaters for long‑distance daisy‑chain layout.
One simulation system integrator built a 6‑DOF platform using pulse‑controlled electric cylinders. The unit produced attitude offset under high‑speed motion and required lengthy on‑site tuning. After switching to native EtherCAT servo electric cylinder solution:
Multi‑axis synchronization error controlled within 90 μs
Field wiring workload reduced by 60%
Total commissioning period shortened from 14 days to 4 days
Real‑time per‑axis load monitoring enables early overload warning
Thrust, stroke and speed are visible specifications of servo electric cylinders. Bus communication capability is an invisible but decisive factor. For 6‑DOF platforms and multi‑axis test rigs requiring high synchronization, native EtherCAT servo actuators solve jitter, desynchronization and long commissioning cycles from the communication layer, lowering long‑term operation‑and‑maintenance cost.
