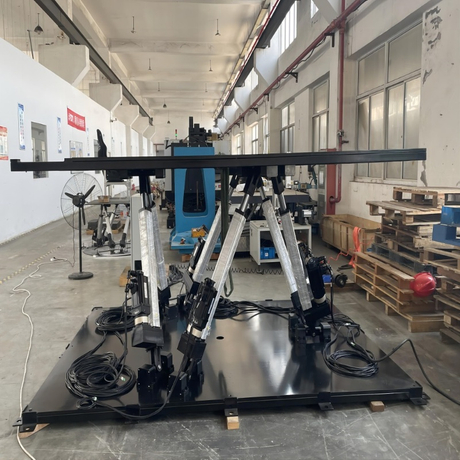

What Payload Capacity Do You Need For A 6DOF Stewart Platform?

Introduction

Payload capacity is one of the most important factors when selecting a 6DOF Stewart platform. While many buyers focus on the maximum load listed in product specifications, payload alone does not determine whether a motion platform will deliver accurate, stable, and reliable performance. The actual payload includes not only the operator but also the cockpit, seats, displays, control devices, and other mounted equipment. Choosing the correct payload capacity ensures smooth motion, protects the actuators from overload, and allows room for future upgrades. This guide explains how to determine the right payload capacity for different 6DOF Stewart platform applications.

Quick Answer

The required payload capacity of a 6DOF Stewart platform depends on the combined weight of the user, cockpit, simulation equipment, and accessories—not just the operator. Most professional buyers should calculate the total static load, estimate the dynamic load generated during motion, and include a safety margin of approximately 20–30%. Selecting a platform based only on maximum rated payload can reduce motion quality, shorten actuator life, and limit future expansion.

Why Payload Capacity Matters

Payload directly influences the performance of a Stewart platform.

If the payload exceeds the platform's design capability, the system may experience:

• Reduced motion accuracy

• Slower response

• Increased actuator wear

• Higher power consumption

• Reduced positioning precision

• Shorter service life

Conversely, selecting a platform with excessive capacity may increase purchase costs without providing additional performance benefits.

Industry Insight

Professional motion platform manufacturers generally recommend sizing the payload according to the actual operating load rather than selecting the largest available model. Proper actuator utilization typically delivers better motion performance and longer equipment life.

What Is Included in Payload?

Many first-time buyers mistakenly assume payload refers only to the person's weight.

In reality, payload includes every component installed on the moving platform.

Typical payload includes:

• Operator

• Seat

• Cockpit frame

• Steering wheel or flight controls

• Pedals

• Instrument panels

• Monitors

• VR equipment

• Computers mounted on the platform

• Audio systems

• Additional accessories

For industrial testing applications, payload may also include:

• Test fixtures

• Test specimens

• Sensors

• Measurement equipment

Table 1. Typical Payload Components

Buyer Consideration

Always calculate the total moving mass rather than estimating only the user weight. Even lightweight accessories can significantly increase the total load over time.

Static Load vs Dynamic Load

Understanding the difference between static and dynamic loads is essential when selecting a Stewart platform.

Static Load

Static load is the total weight supported by the platform while stationary.

It includes all permanently mounted equipment and occupants.

Dynamic Load

Dynamic load occurs while the platform is moving.

Rapid acceleration, braking, or directional changes generate additional forces that increase the effective load acting on the actuators.

Dynamic loading often exceeds the static weight during aggressive motion profiles.

Table 2. Static Load vs Dynamic Load

Expert Tip

Never size a Stewart platform based solely on static weight. Dynamic loading during operation should always be considered to ensure stable performance and avoid actuator overload.

Typical Payload Requirements by Application

Different industries require different payload capacities.

Flight Simulators

Typical payload includes:

• Pilot

• Cockpit shell

• Flight controls

• Avionics

• Displays

Typical payload range:

150–350 kg

Driving Simulators

Driving simulators generally require:

• Driver

• Racing seat

• Steering system

• Pedals

• Dashboard

• Display system

Typical payload range:

200–500 kg

VR Motion Platforms

Most VR systems have relatively lightweight structures.

Typical payload range:

100–250 kg

Industrial Testing

Industrial testing platforms often carry heavy fixtures and equipment.

Payloads vary widely from several hundred kilograms to several tonnes depending on the application.

Table 3. Typical Payload by Application

Industry Insight

Commercial simulator manufacturers often select payload capacities slightly above their current requirements to accommodate future cockpit upgrades without replacing the entire motion platform.

How to Calculate Required Payload Capacity

Calculating payload is relatively straightforward when each component is considered individually.

Step 1. List Every Moving Component

Include:

• Operator

• Seat

• Cockpit

• Displays

• Controls

• Accessories

Step 2. Calculate Total Static Weight

Add together the weight of every component mounted on the platform.

Step 3. Consider Dynamic Forces

Aggressive motion profiles create additional loading during acceleration and deceleration.

Step 4. Add a Safety Margin

Professional engineers typically recommend allowing approximately 20–30% additional capacity above the calculated operating load.

Table 4. Example Payload Calculation

Practical Guidance

Selecting a platform with a reasonable reserve capacity improves motion stability, reduces actuator stress, and provides flexibility for future hardware upgrades without compromising system performance.

How Payload Capacity Affects Motion Performance

Payload capacity influences much more than whether a platform can simply carry the required weight.

It directly affects the dynamic performance of the entire motion system.

Motion Speed

As payload increases, actuators require more force to accelerate and decelerate the platform.

Heavier payloads may reduce:

• Maximum speed

• Acceleration

• Motion responsiveness

Positioning Accuracy

Platforms operating close to their maximum payload may experience reduced positioning precision, particularly during rapid motion changes.

Maintaining sufficient reserve capacity helps improve repeatability.

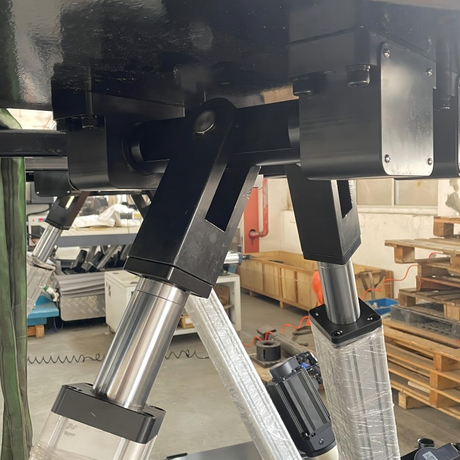

Actuator Life

Continuously operating near the maximum rated load increases mechanical stress on:

• Servo motors

• Ball screws

• Bearings

• Linear guides

• Universal joints

Operating below maximum capacity generally extends equipment life and reduces maintenance requirements.

Energy Consumption

Higher payloads require greater actuator force, increasing power consumption during continuous operation.

Table 5. Effect of Payload on Platform Performance

Industry Insight

Many professional simulator manufacturers intentionally design platforms to operate at approximately 60–80% of rated capacity, providing an optimal balance between motion performance, reliability, and equipment longevity.

Other Factors Besides Payload

Although payload is a critical specification, several additional parameters should also be evaluated when selecting a 6DOF Stewart platform.

Center of Gravity

An uneven center of gravity creates unequal loading on individual actuators.

Proper equipment layout improves motion stability and reduces unnecessary mechanical stress.

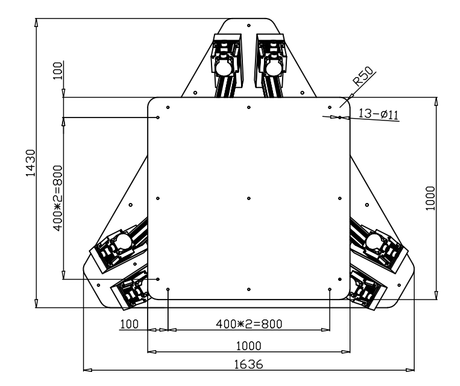

Platform Size

A larger platform accommodates bigger cockpits but generally requires higher actuator forces and increased structural rigidity.

Motion Range

Large pitch, roll, and heave movements increase dynamic loading, particularly during rapid acceleration.

Duty Cycle

Commercial training centers may operate motion platforms continuously for many hours each day.

Industrial-grade actuators designed for continuous duty are better suited to these demanding operating conditions.

Control System

Advanced motion controllers continuously compensate for changing loads, maintaining smooth and synchronized platform movement.

Table 6. Additional Selection Factors

Expert Tip

When requesting quotations, provide suppliers with the estimated center of gravity as well as the total payload. This allows engineers to verify actuator loading and recommend the most suitable platform configuration.

Common Mistakes When Selecting Payload Capacity

Many first-time buyers overestimate or underestimate the payload they actually require.

Table 7. Common Selection Mistakes

Practical Guidance

Work closely with the platform manufacturer during system design. Sharing complete payload information—including equipment dimensions and weight distribution—helps ensure accurate actuator selection and better long-term performance.

Common Misconception: Higher Payload Always Means Better Performance

A common misconception is that selecting the highest payload platform automatically results in better motion performance.

In reality, oversized platforms often:

• Cost more

• Consume more power

• Require larger installation space

• Increase structural weight

• May reduce motion responsiveness for lighter applications

Likewise, undersized platforms may suffer from reduced acceleration, higher actuator stress, and shorter service life.

What Buyers Should Know

The goal is not to purchase the platform with the highest payload rating but to select one that provides sufficient reserve capacity while maintaining excellent motion quality and long-term reliability.

Case Study

Project Background

A professional flight simulator manufacturer planned to launch a new commercial pilot training system using a 6DOF Stewart platform.

The engineering team initially estimated that a 250 kg payload platform would be sufficient because the cockpit structure itself was relatively lightweight.

Challenge

During detailed system integration, engineers calculated the complete moving mass, including:

• Pilot

• Cockpit enclosure

• Instrument panels

• Flight controls

• Display systems

• Audio equipment

• Cable management

• Future hardware upgrades

The actual operating payload reached approximately 285 kg, with additional dynamic forces generated during aggressive motion profiles.

Operating the original platform would have left almost no performance reserve.

Solution

The manufacturer selected a 400 kg-rated electric Stewart platform instead.

The cockpit layout was redesigned to improve weight distribution and lower the center of gravity.

Servo tuning was optimized for the revised payload configuration, allowing the platform to maintain smooth, responsive motion even during demanding flight maneuvers.

Results

Following installation:

• Motion accuracy improved significantly.

• Actuator loading remained well within the recommended operating range.

• Motion response became smoother during rapid pitch and roll movements.

• Future avionics upgrades were completed without replacing the motion platform.

• Long-term maintenance requirements were reduced.

Lessons Learned

The project demonstrated that considering total payload, weight distribution, dynamic loading, and future expansion during the design stage results in a more reliable and cost-effective motion simulation system than selecting a platform based solely on current static weight.

Buyer Checklist

Before selecting the payload capacity of a 6DOF Stewart platform, confirm the following:

• What is the total weight of all moving equipment?

• Has operator weight been included?

• Are future upgrades expected?

• What is the estimated center of gravity?

• What motion profiles will the platform perform?

• Has a 20–30% safety margin been included?

• Is continuous operation required?

• Does the platform provide sufficient actuator reserve capacity?

• Has the supplier verified the payload calculation?

• Are maintenance and upgrade requirements considered?

Expert Recommendations

Experienced motion system engineers generally recommend:

• Calculate the complete moving payload rather than estimating operator weight alone.

• Include a reasonable reserve capacity for future expansion.

• Optimize weight distribution to improve motion quality.

• Prioritize motion accuracy and actuator performance over simply selecting the highest payload rating.

• Choose industrial-grade servo actuators for continuous operation.

• Work with manufacturers that provide engineering support, payload analysis, and customized platform configurations.

Conclusion

Selecting the correct payload capacity is one of the most important decisions when purchasing a 6DOF Stewart platform. The total payload should include every component mounted on the moving platform—not just the operator—and should account for both static and dynamic loading conditions. Adding an appropriate safety margin helps maintain motion accuracy, protects the actuators, and allows for future system upgrades.

Rather than choosing the largest available platform, buyers should evaluate payload together with motion range, center of gravity, duty cycle, control performance, and long-term operating requirements. A properly sized Stewart platform delivers better motion fidelity, greater reliability, lower maintenance costs, and a longer service life, making it a more valuable investment for professional simulation and testing applications.

FAQ

What is the payload capacity of a 6DOF Stewart platform?

Payload capacity varies depending on the platform design. Small VR platforms may support around 100–250 kg, while professional flight simulators, driving simulators, and industrial testing platforms can support several hundred kilograms or even multiple tonnes.

Does payload include only the operator?

No. Payload includes the operator, cockpit, seat, controls, displays, sensors, accessories, and all other equipment mounted on the moving platform. Only stationary equipment mounted outside the platform is excluded.

How much safety margin should I allow?

Most engineers recommend selecting a platform with approximately 20–30% additional capacity above the calculated operating payload. This improves reliability, accommodates future upgrades, and reduces actuator stress during dynamic motion.

Why does weight distribution matter?

An uneven center of gravity increases the load on individual actuators, reducing motion accuracy and accelerating component wear. Proper equipment layout helps maintain balanced actuator loading and smoother platform movement.

Is a higher payload capacity always better?

Not necessarily. Oversized platforms often increase purchase cost, energy consumption, and installation requirements without improving simulation quality. Selecting a platform that closely matches your application while providing an appropriate safety margin usually delivers the best overall performance.
