When purchasing a 6-DOF Stewart motion platform for flight simulation, driving test, seismic simulation or entertainment dynamic cabin, most buyers face a core choice: hydraulic drive or servo electric cylinder drive. Many clients only compare upfront purchase price and ignore long-term hidden costs, service attenuation and daily operation limits. This article combines our factory 2000-hour continuous load test data, real project cost statistics and on-site production photos to quantify the gap between two drive solutions, helping integrators, private simulator enthusiasts and laboratory procurement teams calculate the total lifecycle cost clearly.
All data comes from same-load (120kg effective payload) long-running aging test in our factory workshop
Test Index | Hydraulic 6-DOF Platform | Servo Electric Cylinder 6-DOF Platform |
Average Operating Noise | 78-85 dB | 42-55 dB |
Annual Maintenance Expense | $1,200-$1,800 (oil, seals, filter replacement) | $120-$200 (only regular lubrication) |
Estimated Full Service Life | 3-5 years (seal aging causes leakage) | 8-12 years (roller screw design, low wear) |
Power Consumption (Per hour) | 3.8 kWh | 1.2 kWh |
Oil Leakage Risk | High; 60% test units show slight oil stain after 800h | Zero oil leakage, fully closed electric structure |
Motion Response Delay | 80-120 ms | 5-15 ms |
Indoor Home/Office Compatibility | Not recommended (loud, oil pollution) | Fully suitable for home cockpit, lab, office exhibition |
Supporting matching images to insert:
1. Factory aging test workshop photo (yellow large hydraulic 6DOF platform running test)

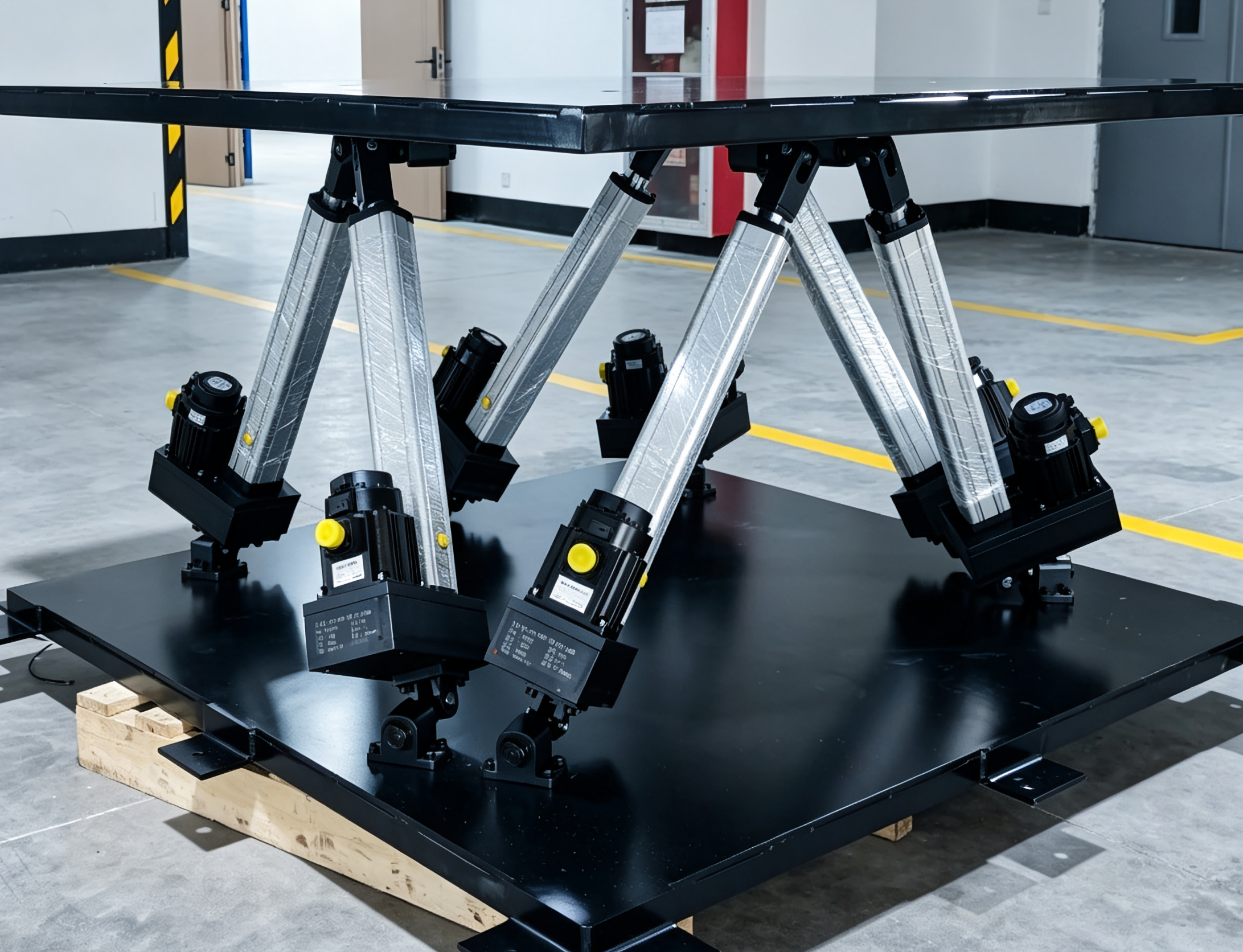

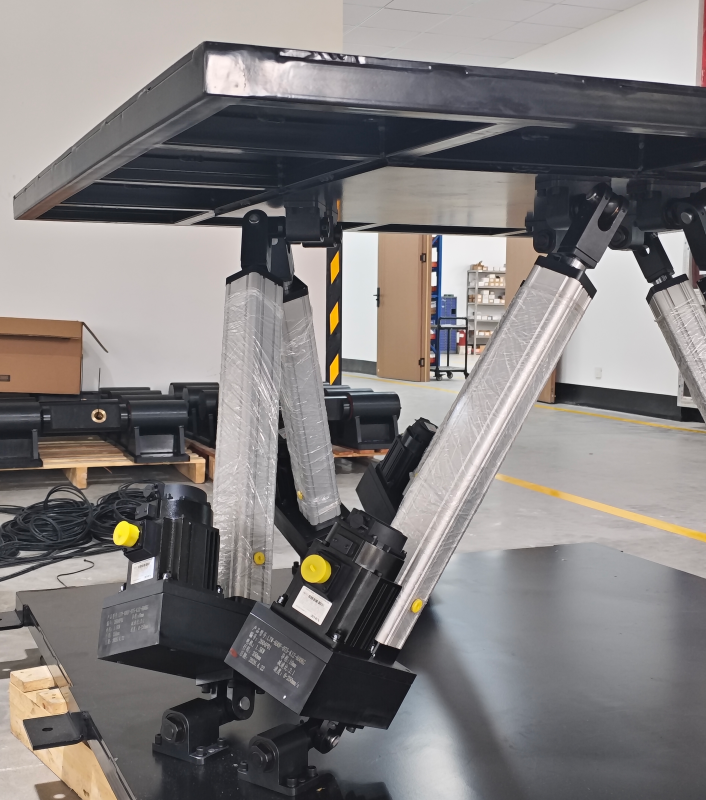

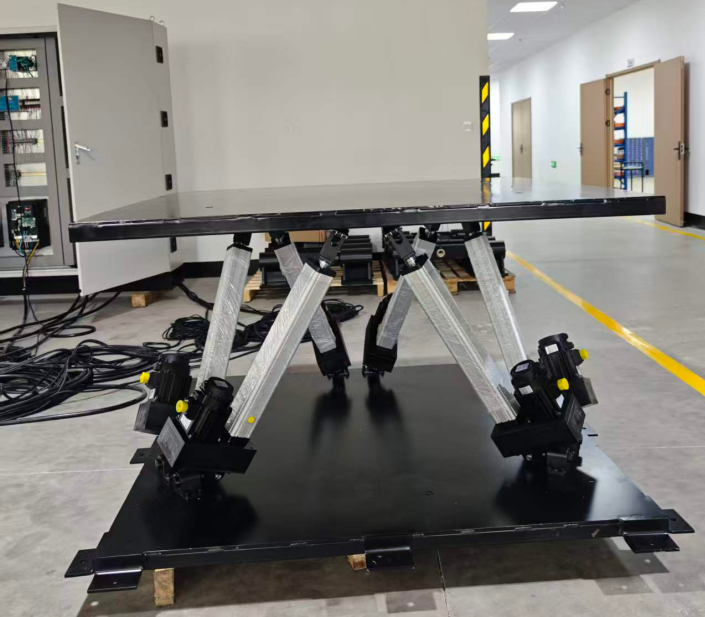

2. Silver servo electric 6DOF platform finished product photo on wooden pallet
3. Noise test instrument screenshot next to two sets of platforms
1. Initial equipment purchase: Higher than electric model by 15%–20% (extra hydraulic station, oil tank, cooling system)
2. 5-year power bill: High continuous power loss of hydraulic pump
3. Consumable replacement: Oil, sealing rings, hydraulic filters, pipeline maintenance every 6 months
4. Hidden loss: Oil pollution floor renovation, equipment downtime caused by leakage faults
5. Disadvantage summary: Suitable only for outdoor industrial vibration testing with high load demand, not for long-term daily simulation.
1. No auxiliary supporting equipment such as hydraulic station, save installation space
2. Ultra-low power consumption cuts electricity expenditure by nearly 70%
3. Few wearing parts; roller screw actuators only need simple grease lubrication every 6 months
4. No oil leakage downtime loss, continuous stable operation for flight simulation training
5. Advantage summary: The mainstream cost-saving solution for private flight cockpits, driving simulators and exhibition immersive equipment.
Supporting matching image: Cost bar comparison chart (visual difference of 5-year total cost for two platforms)
A European flight enthusiast replaced his old hydraulic motion platform with our electric 6-DOF rig in 2024.
· Original hydraulic rig needed oil change every 3 months, now zero extra consumables
· Night flight simulation available, noise no longer disturbs family rest
· Motion synchronization with MSFS2020 improved drastically, simulator sickness reduced significantly
1. Over 500kg super heavy test load
2. Outdoor industrial test site, no noise and clean environment limits
3. Short intermittent working hours (less than 2 hours per day)
1. Private home flight / racing cockpit simulation
2. Indoor laboratory seismic, vehicle road condition test
3. Exhibition hall VR immersive dynamic cabin
4. Long-time continuous daily training simulation
Q1: Does electric servo platform have insufficient thrust compared to hydraulic? A1: Roller screw servo electric cylinder can provide stable thrust up to 2.5 tons single actuator. For most simulation scenarios within 300kg payload, electric thrust fully meets requirements. Super heavy load scenarios can customize reinforced heavy-duty electric cylinders. Q2: Is the purchase price of electric 6DOF platform much higher? A2: The initial price gap has narrowed in recent years. After calculating 3-year maintenance and power cost, electric models are cheaper in overall lifecycle. Q3: Can electric platforms realize the same large-angle tilt motion as hydraulic equipment? A3: Customizable stroke and motion envelope; our electric platform supports maximum ±35° pitch & roll angle, fully matching the motion demand of flight simulation.
If your project requires indoor long-term daily operation, low maintenance and immersive low-latency motion experience, servo electric cylinder 6-DOF platform is the more cost-effective long-term choice. Hydraulic solutions are only targeted at ultra-heavy load outdoor industrial testing scenarios. Send your project payload, space limit and daily working hours to us, we can provide free customized data quotation and lifecycle cost calculation report.
