6 DOF motion platforms are widely adopted in flight simulation, driving simulation, vibration testing, motion simulation and immersive entertainment equipment. Many buyers get misled by marketing specs during selection. Focusing merely on price and superficial indicators while ignoring real world application matching frequently leads to insufficient thrust, poor repeatability, abnormal noise, frequent faults, unsatisfactory simulation performance or even non functional hardware after delivery. This article covers typical pitfalls of 6 DOF platform procurement. It guides readers through spec verification, performance interpretation, solution matching and supplier evaluation to help you select a suitable 6 DOF servo actuated motion platform.
Exaggerated published parameters including payload, stroke, maximum speed and acceleration are the most common trap in the industry.

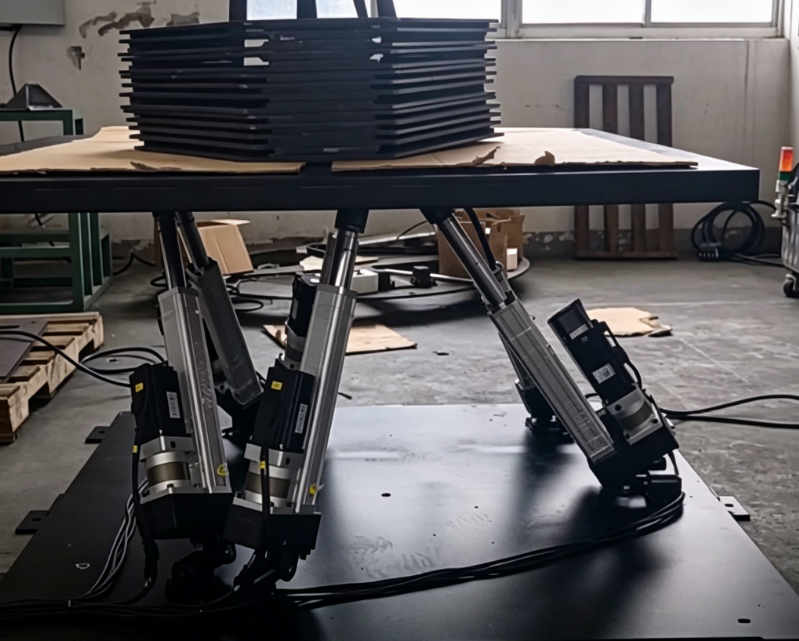

Rated continuous payload vs peak payload Many suppliers advertise peak payload as continuous rated payload. A platform can withstand peak load for short moments. For long duration simulation and continuous turbulent motion scenarios, continuous rated payload must be your selection benchmark. If you size the platform only according to peak payload, servo actuators will suffer continuous overload, overheating, shortened service life, jitter and positioning drift.
Pitfall avoidance tip: Request official datasheets and distinguish continuous rated payload from short term peak payload. Confirm the figure refers to usable table payload, excluding the platform’s own weight.
Total stroke vs effective working stroke Published maximum stroke does not equal usable motion stroke. Some manufacturers list the full mechanical stroke of servo actuators. After deducting mechanical dead zones, safety limits and mechanical interference margins, the real usable travel for simulation drops significantly, limiting pitch roll yaw movements for flight turbulence simulation.

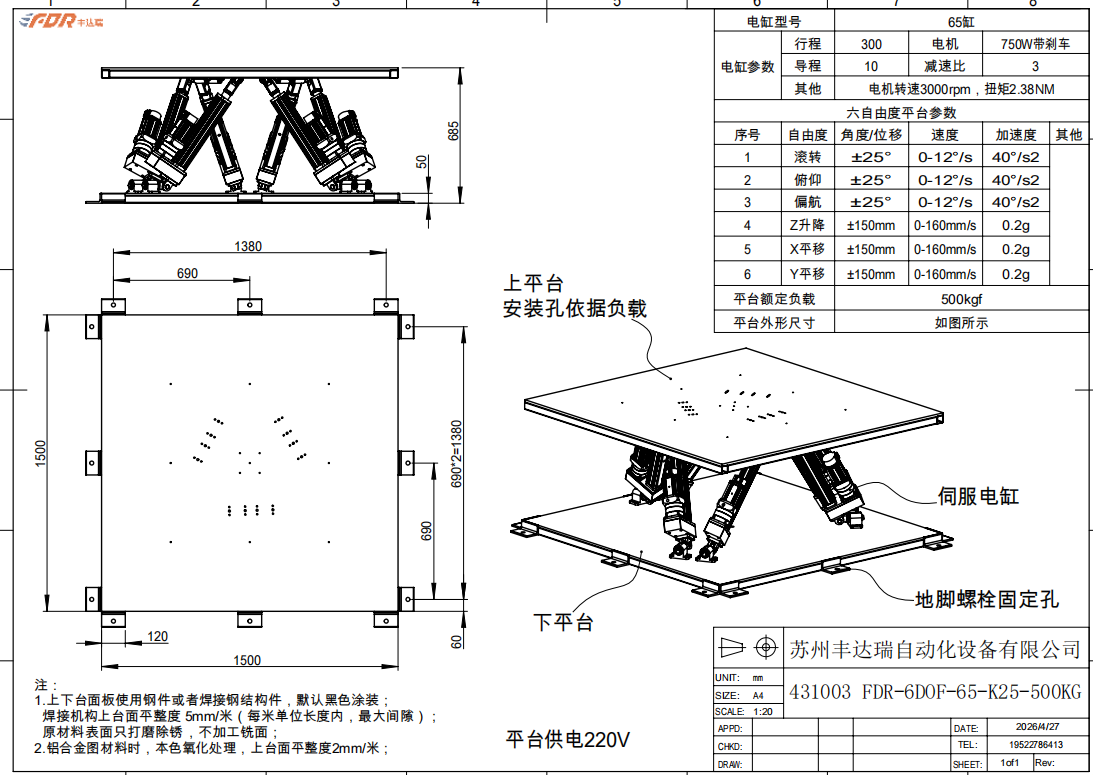

Pitfall avoidance tip: Ask for the motion envelope diagram to verify real effective range for each degree of freedom.
Acceleration and response rate based on no load testing High fidelity simulation demands fast response. Many performance data are measured under no load lab conditions. Once fitted with cockpits or test specimens, acceleration and response degrade sharply. Reliance on no load specs will cause motion lag and poor immersion.
Pitfall avoidance tip: Inform suppliers of your actual payload weight and request performance data under loaded conditions.
Static repeatability vs dynamic precision Impressive static repeatability does not guarantee high fidelity dynamic performance. For 6 DOF simulation platforms, dynamic tracking error matters most, especially for flight and driving simulation. Synchronized motion performance weighs far more than static positioning indicators.
Different drive types serve distinct scenarios. Wrong drive solutions create high long term maintenance costs.
Hydraulic 6 DOF platforms: High thrust, yet prone to oil leakage, noisy operation and complicated maintenance with required hydraulic power stations. Not suitable for private indoor projects or clean lab environments.
Pneumatic platforms: Low cost, but low precision and poor controllability. Only fit simple display oriented applications, not high accuracy simulation and testing.

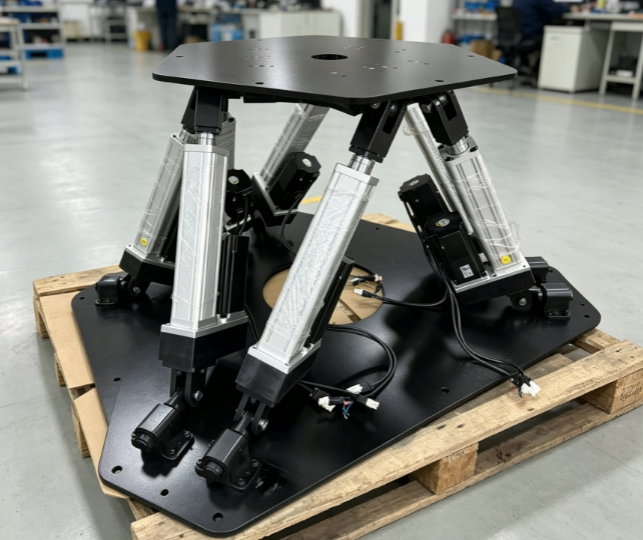

Servo electric cylinder driven 6 DOF platforms: Low noise, oil free, fast response and low maintenance. It is the mainstream solution for modern simulation and research projects. Still, evaluate actuator quality carefully; ball screw, motor and reducer quality determine overall platform service life.
Pitfall avoidance reminder: Avoid ultra low cost servo actuator solutions. Poor quality screws and ordinary motors produce mechanical backlash, jitter and accelerated wear during long time operation.
Many buyers purchase off the shelf standard platforms without considering project specific working conditions, resulting in hardware failing application requirements.
Application scenario matching Flight simulation, vehicle simulation, vibration testing and entertainment motion platforms follow totally different motion logic. Flight simulation focuses on smooth turbulence and attitude angles; vibration testing requires high frequency cyclic shocks. One single platform cannot cover all use cases.
Total weight and center of gravity position Many users only calculate equipment weight and ignore cockpit accessories and human loaded center of gravity height. High center of gravity raises overturning risks during platform movement, worsens mechanical stress and accelerates actuator wear. Provide full payload weight and center of gravity coordinates for supplier simulation verification in the selection phase.
Installation space constraints Check static height and maximum dynamic overall height. Confirm floor mount or recessed installation requirements. Many projects find hardware cannot fit on site after delivery.
Software and control system compatibility Qualified hardware yields little value with incompatible control software. Confirm upper computer communication protocols, customizable motion curve support and debugging complexity. Private use projects prioritize user friendly debugging; research oriented applications require open secondary development interfaces.
What is included in quotations Some low price offers only cover mechanical frames, excluding servo actuators, drivers, control software and wiring. Additional component purchases push up total expenditure. Double check quotation scope: mechanical base, complete servo actuator sets, servo drives, control software, commissioning service and warranty coverage.
Prototypes, reference cases and lead time For high load custom 6 DOF platforms, review similar completed industry cases. On site prototype testing is recommended when possible. Suppliers without relevant project experience bring higher implementation risks.
Warranty and after sales support Distinguish full unit warranty from consumable part warranty. Clarify warranty terms for core servo actuator assemblies. Confirm remote debugging and on site technical support availability. Low cost vendors often provide only one time hardware delivery with minimal follow up technical service.
✅ Confirm continuous rated payload instead of peak payload
✅ Obtain motion envelope data for real effective travel instead of raw actuator stroke
✅ Provide total payload weight, center of gravity data and installation dimensions
✅ Verify acceleration and response indicators under loaded conditions ✅ Confirm drive type and core actuator configurations (ball screw, motor) ✅ Validate control system interfaces and upper computer compatibility ✅ Review quotation breakdown and scope of supply
✅ Check industry reference cases, warranty and after sales support
6 DOF motion platforms are highly customized motion equipment. Highest priced products are not always suitable, yet price only procurement almost guarantees pitfalls. Rather than chasing top shelf nominal parameters, prioritize real world working conditions, verify specification authenticity and match complete hardware software solutions. This prevents budget and schedule losses caused by under performing delivered hardware. Contact us for free technical assessment for your 6 DOF platform and servo actuator projects.
