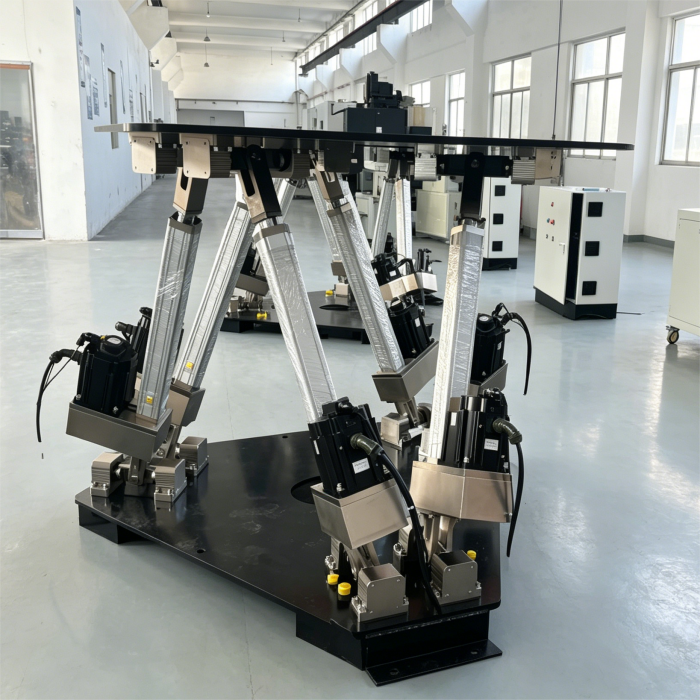

FDR 6DOF 6-AXIS Servo Electric Cylinder Motion Simulating Platform 1500kg Payload

The FDR 6DOF 6-Axis Motion Simulating Platform with 1500kg payload is a high-performance heavy-duty motion simulation equipment based on the Stewart parallel mechanism. This is a customized model we have produced 50 sets for more than 10 customers.

It achieves precise translation and rotation in six degrees of freedom, featuring high structural rigidity, stable operation and rapid dynamic response. This platform is applicable to flight simulation, driving training, VR experience and industrial testing, capable of accurately reproducing complex dynamic scenarios. Equipped with a reliable servo control system and corrosion-resistant structure, it meets the strict requirements of various harsh industrial and professional application scenarios, providing high-fidelity and stable motion simulation support.

Quantity:
Availability:





Inquire Add to Basket

Model:
FDR-6DOF-1500KG
Brand:
FDR

Product Description

Configuration List of FDR 6DOF-1500KG Payload:

No.	Item	Quantity
1	FDR095 Electric Cylinder	6 pieces
2	Servo Motor and Driver--3KW	6 Sets
3	PLC Controller	1 Pc

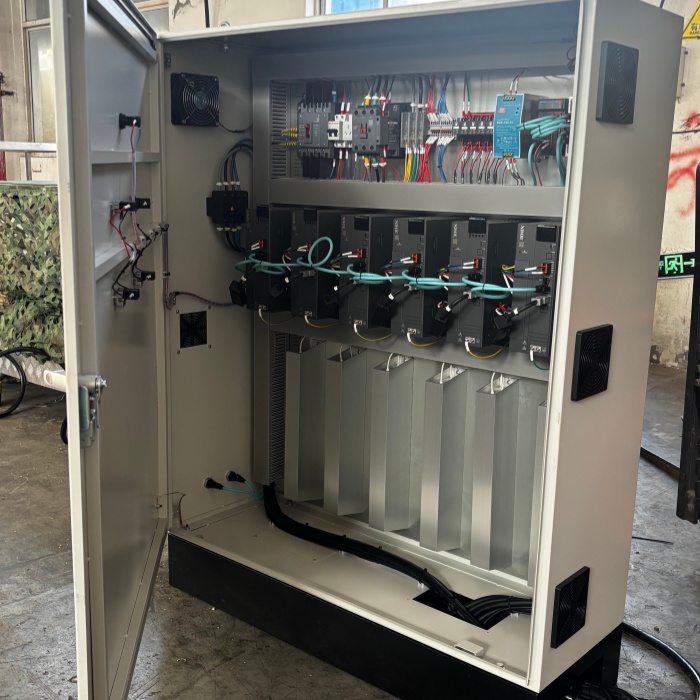

4	Control Cabin	1 Pc
5	Base Platform	1 Pc
6	Upper Platform	1 Pc
7	Control System Installation Pack	1 Set

Why Choose FDR 6DOF Motion Platform?

High-Precision Motion ControlOur 6DOF platform delivers stable, smooth, and highly accurate movement with low backlash, ensuring reliable performance for simulation, testing, and industrial automation applications.
Customizable Engineering SolutionsWe support full customization of stroke, thrust, speed, and installation dimensions to meet your specific project requirements, from motion simulation to dynamic testing.
Strong Industrial DurabilityBuilt with high-strength structural components and premium servo control systems, our platforms guarantee long service life, stable continuous operation, and low maintenance cost.
Advanced & Stable Driver SystemEquipped with high-performance servo controls and intelligent algorithms, the system features fast response, high positioning accuracy, and strong anti-interference ability.
Professional R&D & Manufacturing StrengthAs an experienced manufacturer, FDR provides strict quality inspection, standardized production, and complete technical support from design to after-sales service.
Wide Application CompatibilityWidely used in flight simulators, driving simulators, motion rides, ship simulation, VR experience, aerospace testing, mechanical vibration testing, and precision automation equipment.
Complete After-Sales SupportWe offer on-site installation guidance, technical training, timely troubleshooting, and long-term after-sales service to ensure stable operation of your equipment.
