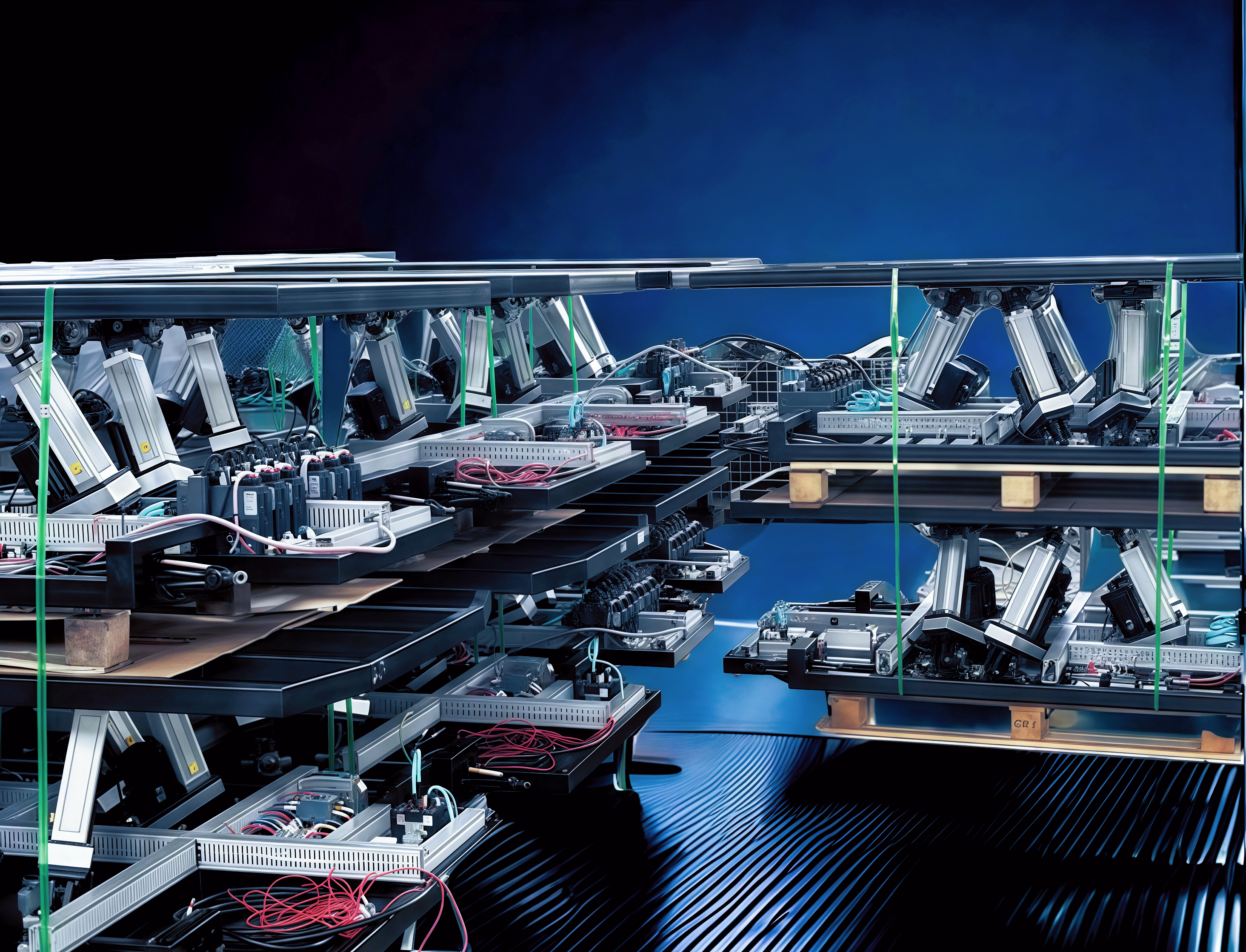

As a high-precision mechatronic device with full 3D rigid-body motion capability, the 6-DOF Stewart parallel platform independently delivers combined linear translation and rotational movement across three orthogonal axes. It is widely adopted in aerospace flight simulation, marine wave emulation, automotive NVH testing, university mechanical research, and other industries. Drawing on years of engineering experience in R&D and manufacturing motion simulation equipment, this article systematically analyzes core universal performance parameters and mainstream drive actuators, offering technical references for equipment selection and customized project design.
Refers to the maximum linear travel of the moving platform along the three orthogonal X, Y, and Z spatial axes, measured in millimeters (mm). This fundamental selection parameter defines the equipment’s capacity to replicate linear operating conditions, including undulation, vibration, and vertical lifting, serving as a baseline indicator for motion simulation scenarios.
Denotes the maximum rotational angle of the moving platform around the three orthogonal rotary axes, measured in degrees (°). It determines the system’s ability to reproduce composite postures such as pitch, roll, and yaw. Customized stricter specifications are commonly required for aerospace and marine simulation applications.
Represents the stable continuous load the platform can bear when weight is applied at the geometric center of the moving platform, measured in kilograms (kg). Most manufacturers only publish ideal central load ratings. As a supplementary critical metric, allowable eccentric torque reflects real-world load capacity for cabins or unilateral tooling layouts, preventing structural wear and posture instability caused by long-term off-center loading.
Horizontal rotation around the vertical central axis of the platform. In aerospace simulation, this vertical axis sits perpendicular to the aircraft’s reference plane, and yaw motion accurately reproduces horizontal attitude changes such as aircraft sideslip and steering.
Lateral tilting rotation around the horizontal transverse axis. Corresponding to an aircraft’s transverse axis, it simulates lateral sway induced by crosswinds as well as ship rolling motions.
Tilt movement around the longitudinal front-rear axis, covering upward lifting and downward sinking. Aligned with the aircraft’s main longitudinal reference axis, pitch recreates dynamic postures, including aircraft takeoff/landing and ship pitching.
The pose error margin generated when the platform repeatedly reproduces a target posture. Determined by servo sensor sampling precision, multi-axis synchronous motion control algorithms, and mechanical structural rigidity, it acts as a core evaluation standard for scientific research and high-precision simulation applications.
The peak linear velocity achievable by a single axis of the moving platform, in mm/s or m/s. High-speed servo drive systems are required for dynamic simulation scenarios featuring turbulent airflow and violent bump impact.
The peak acceleration and deceleration output during platform startup, shutdown, and posture switching, measured in mm/s⊃2;. It directly impacts the authenticity of simulating transient shock and high-frequency dynamic operating conditions.
As the core power conversion component of 6DOF platforms, the structural design of transmission screws exerts a decisive influence on equipment precision, service life, and applicable scenarios. The four mainstream transmission schemes in the industry are outlined below:
Adopts rolling friction transmission with ball bearings. It features low friction loss, high transmission efficiency, and micron-level positioning accuracy, supporting stable long-duration continuous operation. Widely applied to high-standard scenarios requiring high precision and uninterrupted long-term testing, such as professional simulators.
No ball rolling pairs; power transmission relies on sliding friction between the screw and the nut. It carries lower manufacturing costs yet suffers from substantial friction loss, limited repeat positioning accuracy, and easy clearance generation after prolonged operation. Mainly used for low-precision static demonstration equipment.
A simplified basic screw-and-nut transmission structure with low production costs, yet obvious shortcomings in motion smoothness and positioning accuracy. Only suitable for basic display devices without strict testing requirements.
Eliminates traditional mechanical screw transmission pairs and converts electric energy directly into linear displacement output. It delivers ultra-fast response speed, zero mechanical backlash, and superior repeat positioning accuracy, though with higher overall manufacturing costs. Primarily deployed for ultra-high-end precision mechanical testing and special high-accuracy simulation projects.
6DOF motion platforms from different manufacturers vary greatly in structural design, drive configuration, and control strategies, with distinct performance parameter specifications. When selecting equipment, decisions cannot rely solely on nominal printed parameters. Instead, a full set of indicators, including translation stroke, rotation angle, eccentric load capacity, transmission type, and synchronous control precision, must be comprehensively reviewed based on actual working conditions.

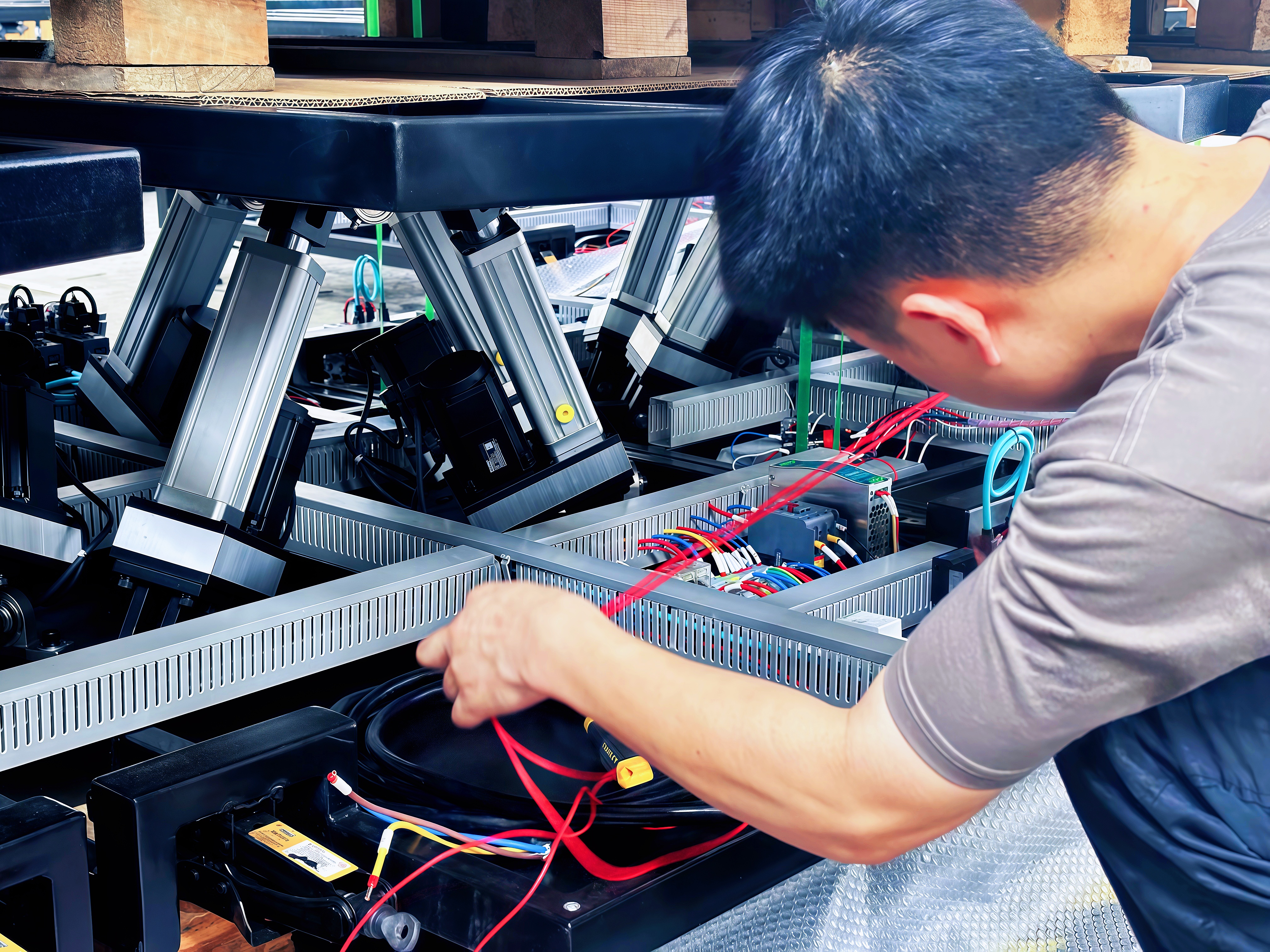

Electric 6DOF platforms driven by ball screws deliver optimal overall adaptability for high-precision continuous operation sectors, including aviation training, marine simulation, automotive inspection, and university research. Qualified finished equipment undergoes full testing under full-load and eccentric composite working conditions before delivery, accompanied by complete test reports for transparent and traceable performance metrics. Meanwhile, self-developed motion control systems support secondary development to accommodate customized simulation test demands.
