Ball Screw Vs Roller Screw: Which Makes Your 6DOF Platform More Durable & High-Fidelity?

Most 6DOF motion platform buyers focus only on load capacity, stroke, and speed. But the internal screw structure determines 80% of your platform’s long-term stability and simulation fidelity.

Many low-cost 6DOF rigs start smooth out of the box but gradually produce micro-jitter, loose feedback, delayed turbulence response, and obvious precision decay after 500–1000 hours of operation. The core culprit is simple: ball screw wear and point-contact fatigue.

High-end flight simulation, vehicle road simulation, and industrial vibration test platforms almost always upgrade to planetary roller screw actuators.

In this article, we share 3000-hour continuous load test data, motion fidelity differences, wear mechanism analysis, and clear selection guidance to help you understand exactly which screw type suits your 6DOF project.

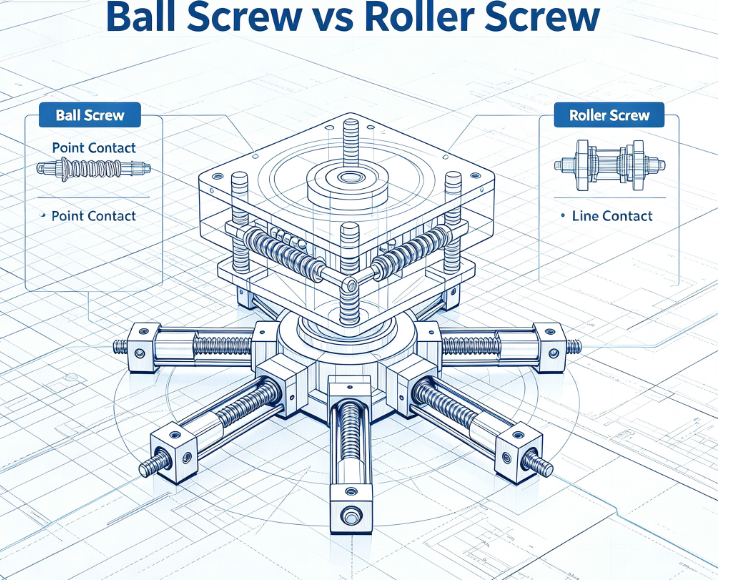

1. Core Structural Difference: Point Contact vs Line Contact

The fundamental gap between ball screw and roller screw lies in contact form, which decides load capacity, rigidity and service life.

Ball Screw: Steel balls make point contact with the screw groove. Under dynamic reciprocating load and frequent impact, local pressure is extremely high, causing gradual material fatigue, wear and backlash increase.

Planetary Roller Screw: Multiple threaded rollers form line contact with the screw. Load is evenly distributed over a larger contact area, greatly reducing unit pressure and wear speed.

This is why roller screw actuators maintain tight precision for years, while ball screws slowly become loose and jittery.

2. 3000-Hour Factory Aging Test Data Comparison (Real Workshop Data)

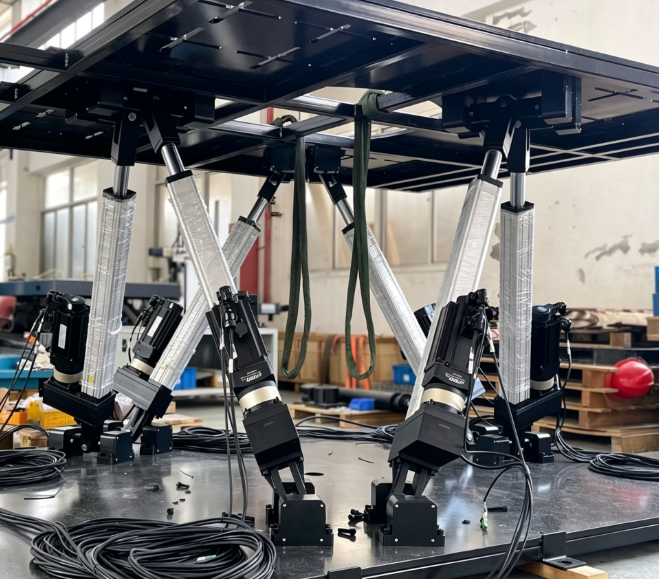

We tested two sets of 6DOF platform actuators under identical 120kg full-cycle dynamic load, simulating real flight turbulence and road vibration conditions.

Key conclusion: Ball screws perform well in static low-frequency scenarios but fail quickly under continuous dynamic simulation loads. Roller screws are purpose-built for long-hour, high-frequency 6DOF motion simulation.

3. Why Roller Screw Delivers Better Simulation Fidelity

For flight simulators and racing motion platforms, micro-motion consistency equals immersion.

Ball screw inherent defects in simulation:

• Slight gap and rolling resistance fluctuation cause unsmooth tiny turbulence feedback

• After wear, the platform produces delayed and disconnected motion

• Easy to cause simulator sickness due to inconsistent acceleration output

Roller screw unique advantages for simulation:

• Higher overall rigidity, minimal deformation under load

• Uniform line contact ensures ultra-linear motion output

• No micro-jitter during low-speed and fine turbulence simulation

• Long-term motion curve consistency remains stable

This is why professional training simulators and high-end VR dynamic cabins universally adopt roller screw electric cylinders.

4. Application Selection Guide: Which One Should You Choose?

Choose Ball Screw 6DOF Platform If:

• Light use, personal entertainment, low frequency operation

• Budget-sensitive entry-level simulation projects

• Static positioning, low dynamic impact working conditions

Choose Roller Screw 6DOF Platform If:

• Long-hour daily flight/racing simulation training

• Industrial vibration, road condition, seismic simulation testing

• High fidelity requirement, pursue zero-jitter smooth motion

• Need 5–10 years stable service life without frequent maintenance

5. Common Buying Pitfall: Hidden Screw Reduction Configuration

Many suppliers mark “high-precision electric cylinder” but use ordinary ball screws. After 1–2 years of operation, users will face:

• Platform shaking during turning and turbulence

• Inconsistent motion synchronization

• Increased maintenance frequency and replacement cost

Professional tip: When purchasing 6DOF platforms, confirm clearly whether the internal actuator adopts planetary roller screw or ordinary ball screw. This single parameter determines your long-term user experience and equipment value.
